Mercedes-Benz S class II (W126) Sedan All photos (8)
Mercedes-Benz S class II (W126) · Sedan · 1979–1985

Mercedes-Benz S class 380 3.8 AT 204 HP

GasolineAutomatic, 4 gearsRear drive
Power
204 hp · 150 kW
Torque
315 Nm
0–100 km/h
9.8 s
Top speed
210 km/h
Fuel consumption
13.0 l/100 km
Other versions of this body · 12
300 3.0 AT 122 HP 300 3.0 AT 125 HP 380 3.8 AT 204 HP 380 3.8 MT 204 HP 500 5.0 AT 231 HP 500 5.0 AT 241 HP All versions →

Consumption and performance

manufacturer data
Top speed
210 km/h
Acceleration 0–100 km/h
9.8 s

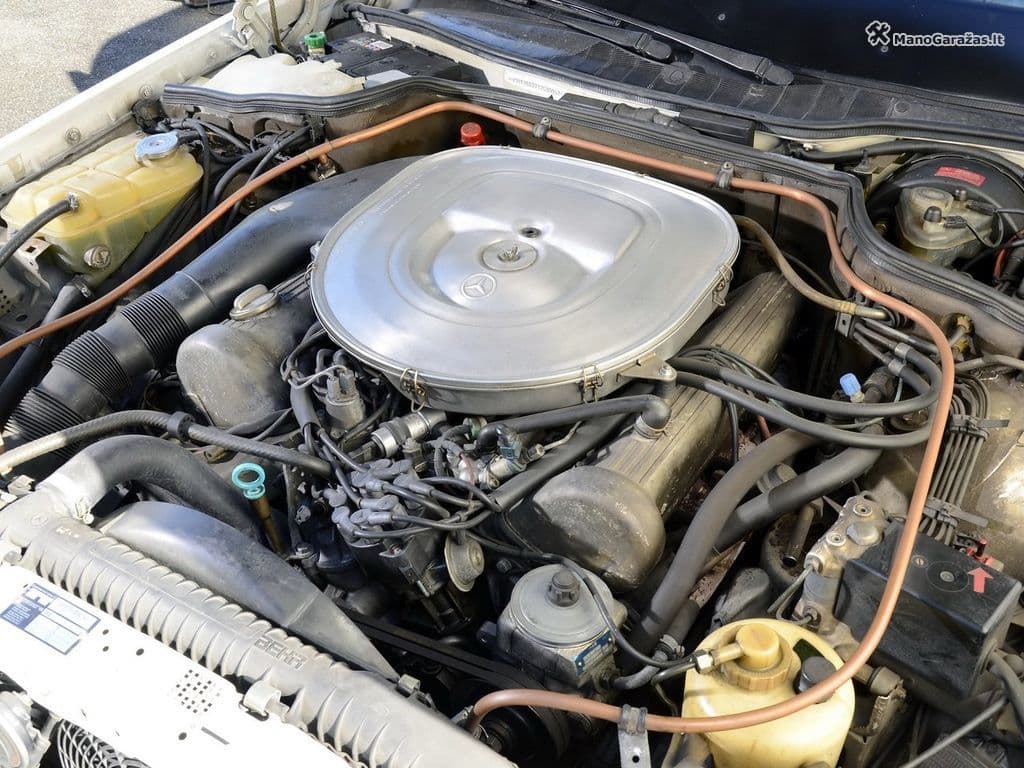

Engine

M116.962 · 3,800 cm³
Engine type
Gasoline
Engine code
M116.962
Displacement
3,800 cm³
Max power
150 kW / 204 hp
Torque
315 Nm at 3250 rpm
Fuel
A80
Fuel system
Multipoint injection
Turbo
No
Engine position
V type
Cylinders
8
Valves per cylinder
2
Valvetrain
SOHC
Bore
88 mm
Stroke
78.9 mm
Compression ratio
9.4

Transmission

Drive
Rear
Gearbox
Automatic
Gears
4

Dimensions and capacity

Body code W126 · class F
Body type
Sedan
Doors
4
Seats
5
Length
5,286 mm
Width
1,821 mm
Height
1,440 mm
Wheelbase
3,076 mm
Front track
1,545 mm
Rear track
1,517 mm
Ground clearance
150 mm

Wheels, brakes and chassis

Optional tyre sizes
225/55R16, 225/60R15, 245/50R16
Wheel fitment (PCD, CB)
DIA66.6 5x112
Front brakes
Ventilated discs
Rear brakes
Discs
Front suspension
Independent, coil spring
Rear suspension
Independent, coil spring
