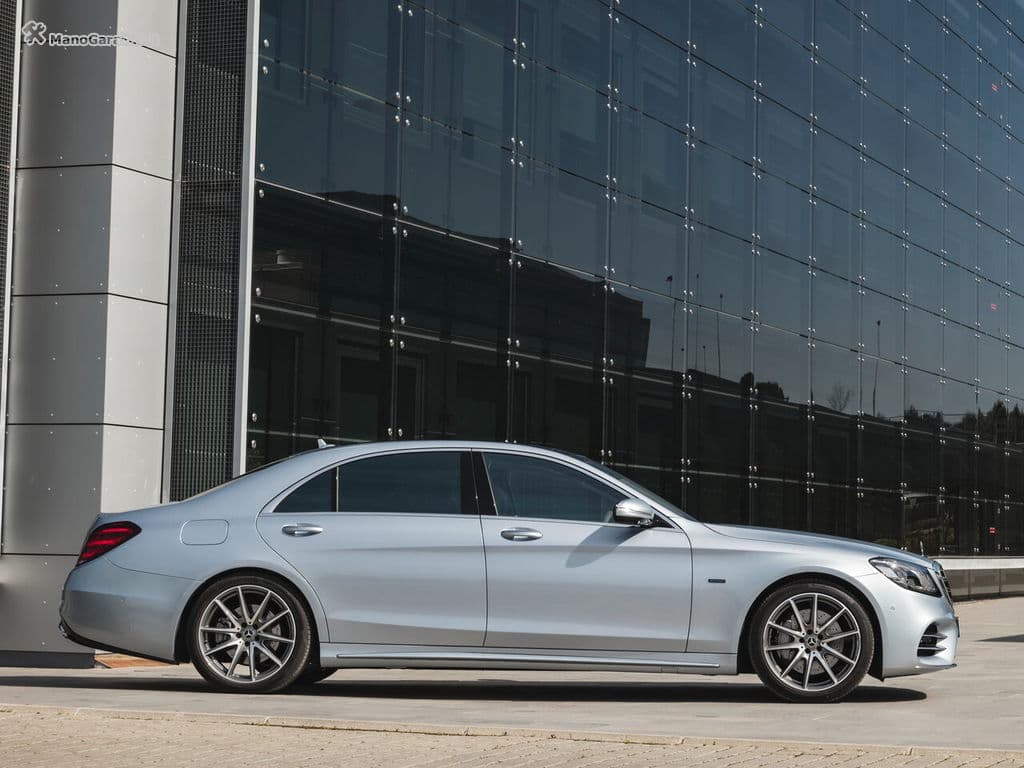

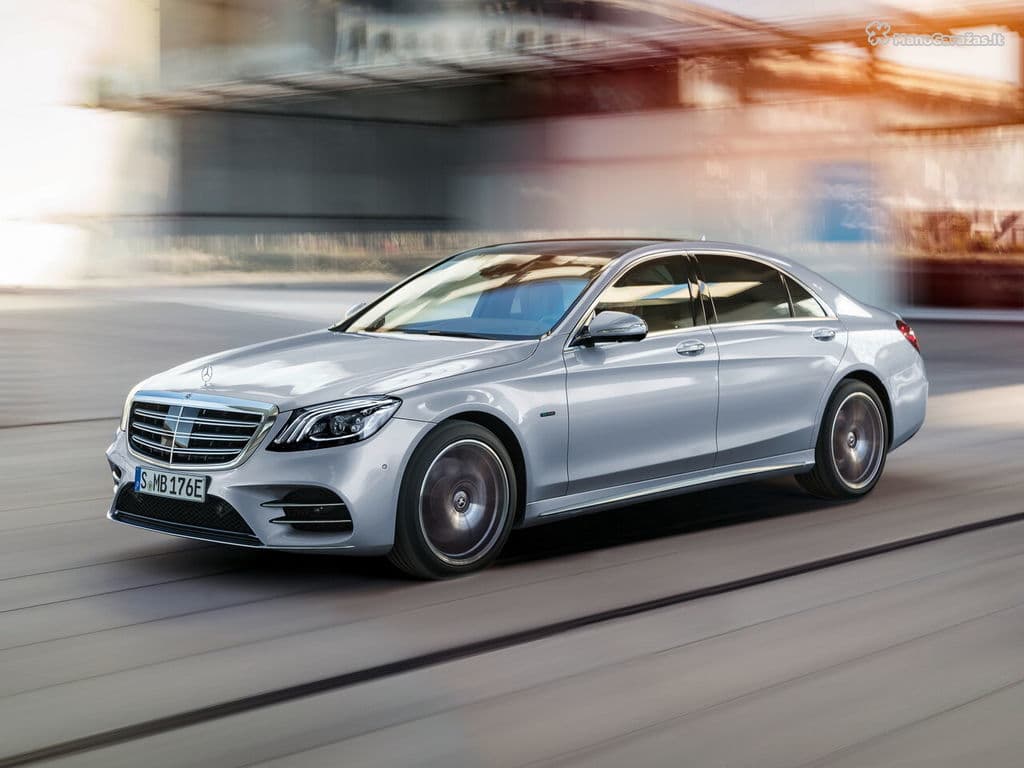

Mercedes-Benz S class VI (W222, C217) Facelift Sedan Long All photos (18)
Mercedes-Benz S class VI (W222, C217) Facelift · Sedan Long · 2017–2020

Mercedes-Benz S class 560 e Long 3.0 AT 367 HP

Plug-in hybridAutomatic, 9 gearsRear driveEuro 6
Power
367 hp · 270 kW
Torque
500 Nm
0–100 km/h
5.0 s
Top speed
250 km/h
Energy consumption
20.0 kWh/100 km
Electric range
50 km
Other versions of this body · 14
400 d Long 2.9 AT 340 HP 400 d Long 2.9 AT 340 HP AWD 560 e Long 3.0 AT 367 HP 450 Long 3.0 AT 367 HP 450 Long 3.0 AT 367 HP AWD 500 Long 3.0 AT 435 HP All versions →

Consumption and performance

manufacturer data
Top speed
250 km/h
Acceleration 0–100 km/h
5 s
Fuel tank
70 l

Engine

M 276 DEH 30 LA · 2,996 cm³
Engine type
Plug-in hybrid (PHEV)
Engine code
M 276 DEH 30 LA
Displacement
2,996 cm³
Max power
270 kW / 367 hp
Torque
500 Nm at 1800 rpm
Fuel
A98
Fuel system
Direct injection
Turbo
Turbo
Engine position
V type
Cylinders
6
Valves per cylinder
4
Valvetrain
DOHC
Bore
88 mm
Stroke
82.1 mm
Compression ratio
10.7
Emission standard
Euro 6
CO₂ emissions
59 g/km

Transmission

Drive
Rear
Gearbox
Automatic
Gears
9

Dimensions and capacity

Body code X222 · class F
Body type
Sedan
Doors
4
Seats
4, 5
Length
5,271 mm
Width
1,905 mm
Width incl. mirrors
2,130 mm
Height
1,496 mm
Wheelbase
3,165 mm
Front track
1,630 mm
Rear track
1,643 mm
Ground clearance
128 mm
Kerb weight
2,225 kg
Max weight
2,825 kg

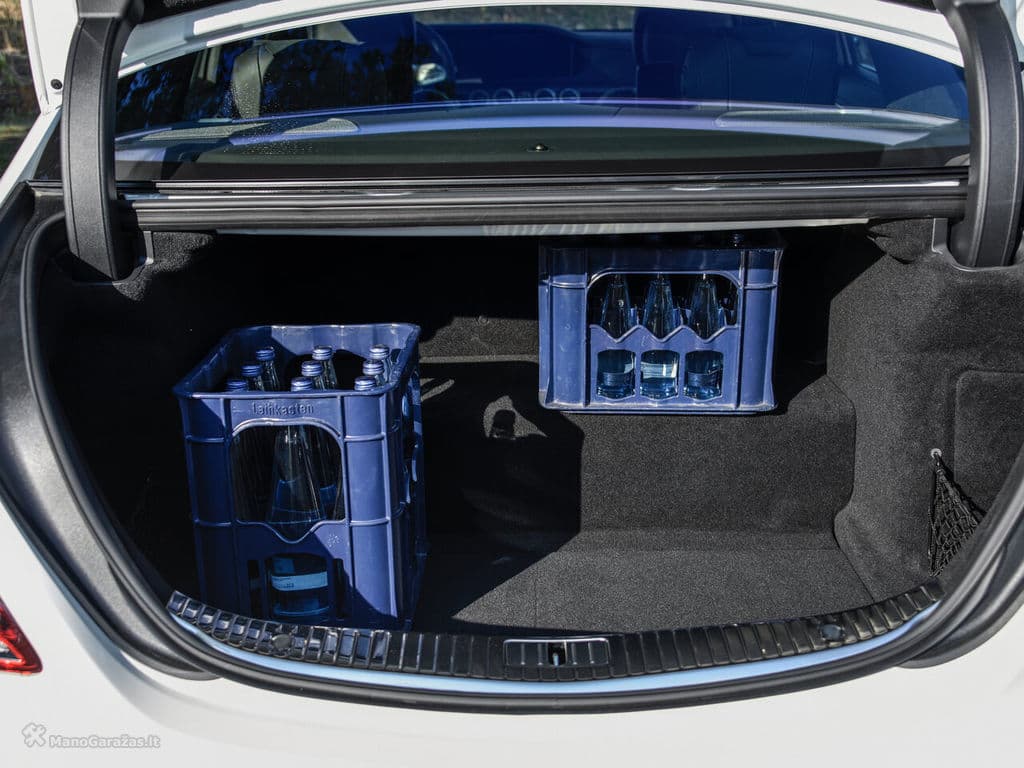

Boot space (min)
510 l
Boot space (max)
510 l

Wheels, brakes and chassis

Tyre size
245/50/R18 275/45/R18
Wheel fasteners
Bolts M14x1.5
Tyre pressure
2.6-2.8 bar
Front brakes
Ventilated discs
Rear brakes
Ventilated discs
Front suspension
Independent, air suspension
Rear suspension
Independent, air suspension

Electric / hybrid

Battery capacity
13.5 kWh
Battery type
Li-ion
Energy consumption
20 kWh/100 km
Test cycle
NEDC
Full charge time
1.5 h (AC wallbox)
Electric range
50 km
Charging ports
Type 2
