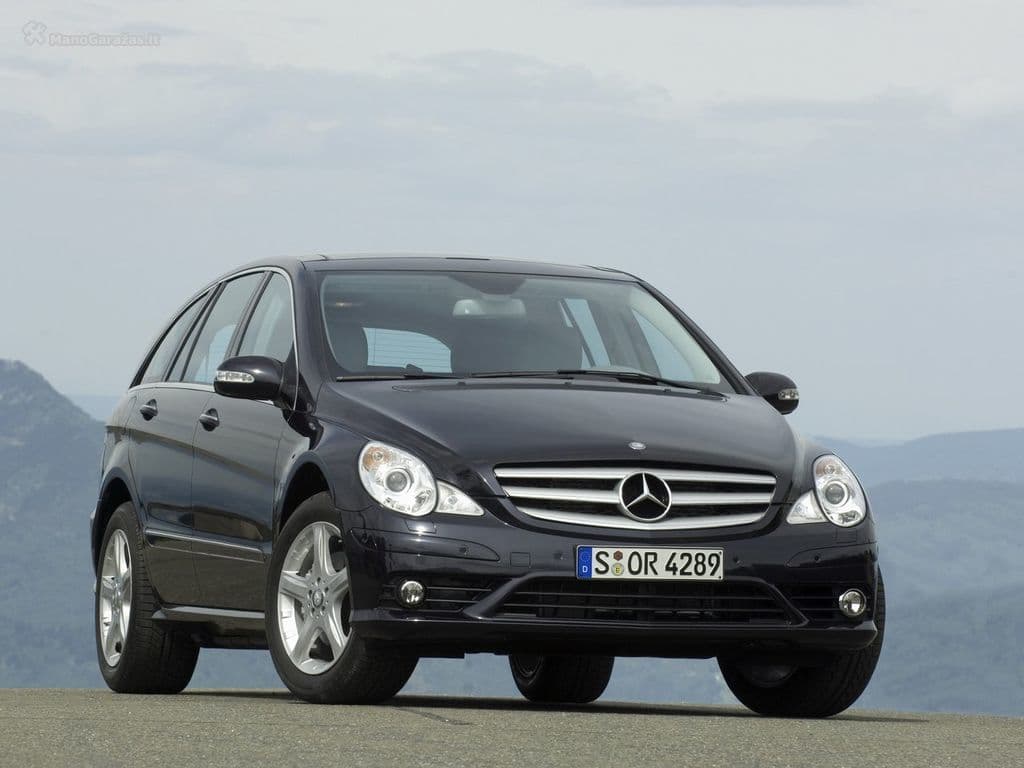

Mercedes-Benz R class I Facelift · Minivan · 2007–2010
Mercedes-Benz R class 320 3.0 AT 224 HP AWD
- Power
- 224 hp · 165 kW
- Torque
- 510 Nm
- 0–100 km/h
- 8.8 s
- Top speed
- 222 km/h
- Fuel consumption
- 9.3 l/100 km
- On a full tank
- ~860 km
Other versions of this body · 13
Consumption and performance
- Top speed
- 222 km/h
- Acceleration 0–100 km/h
- 8.8 s
- Fuel tank
- 80 l

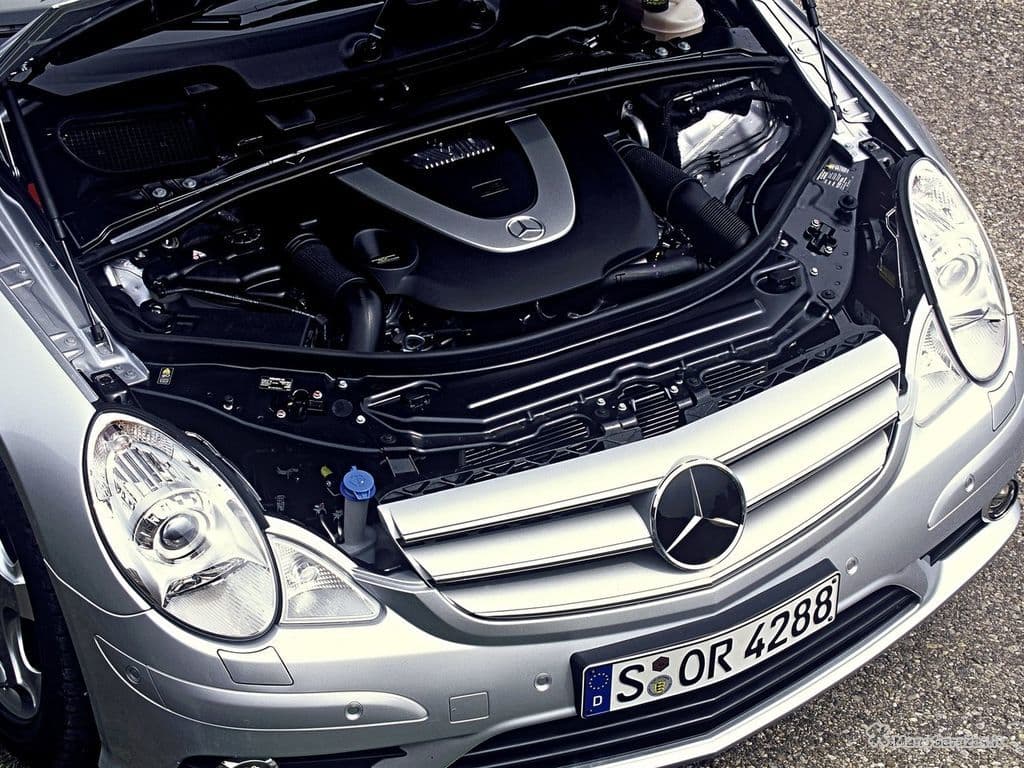

Engine
- Engine type
- Diesel
- Engine code
- om642.950
- Displacement
- 2,987 cm³
- Max power
- 165 kW / 224 hp
- Torque
- 510 Nm at 1600 rpm
- Fuel system
- Diesel, Common rail
- Turbo
- Turbo
- Engine position
- V type
- Cylinders
- 6
- Valves per cylinder
- 4
- Valvetrain
- DOHC
- Bore
- 83 mm
- Stroke
- 92 mm
- Compression ratio
- 17.7
- Emission standard
- Euro 5
- CO₂ emissions
- 223 g/km
Transmission
- Drive
- All
- Gearbox
- Automatic
- Gears
- 7
Dimensions and capacity
- Body type
- Minivan
- Doors
- 5

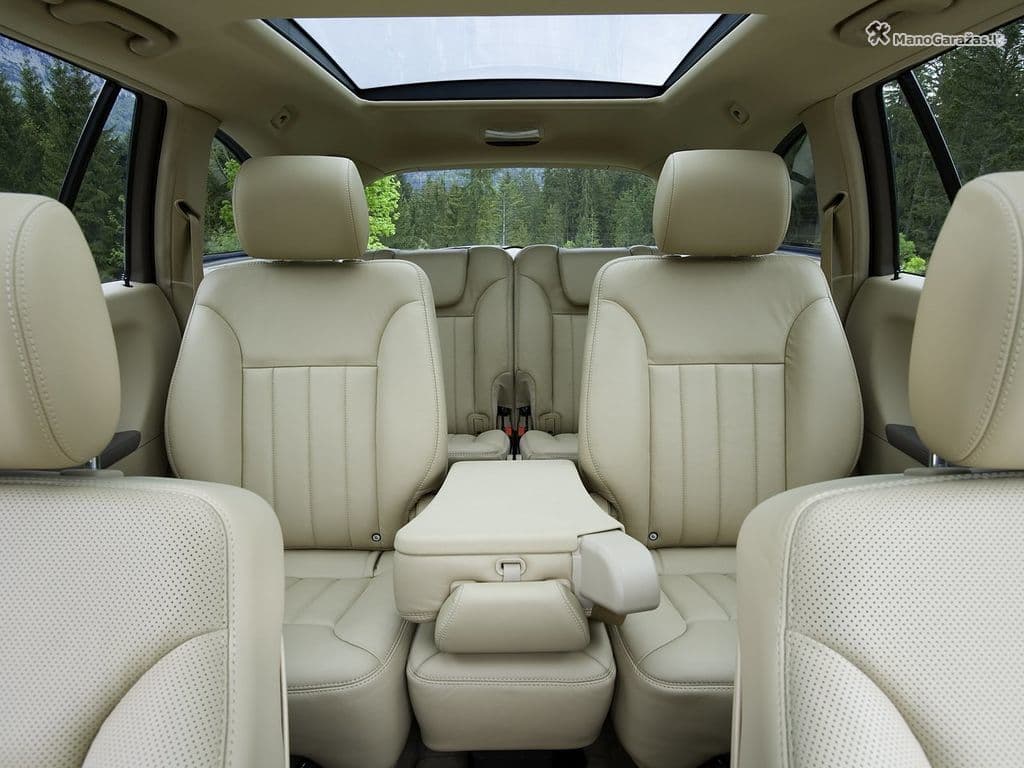

- Seats
- 5, 7
- Length
- 5,173 mm
- Width
- 1,922 mm
- Height
- 1,661 mm
- Wheelbase
- 3,215 mm
- Front track
- 1,643 mm
- Rear track
- 1,636 mm
- Ground clearance
- 123 mm
- Kerb weight
- 2,295 kg
- Max weight
- 2,895 kg

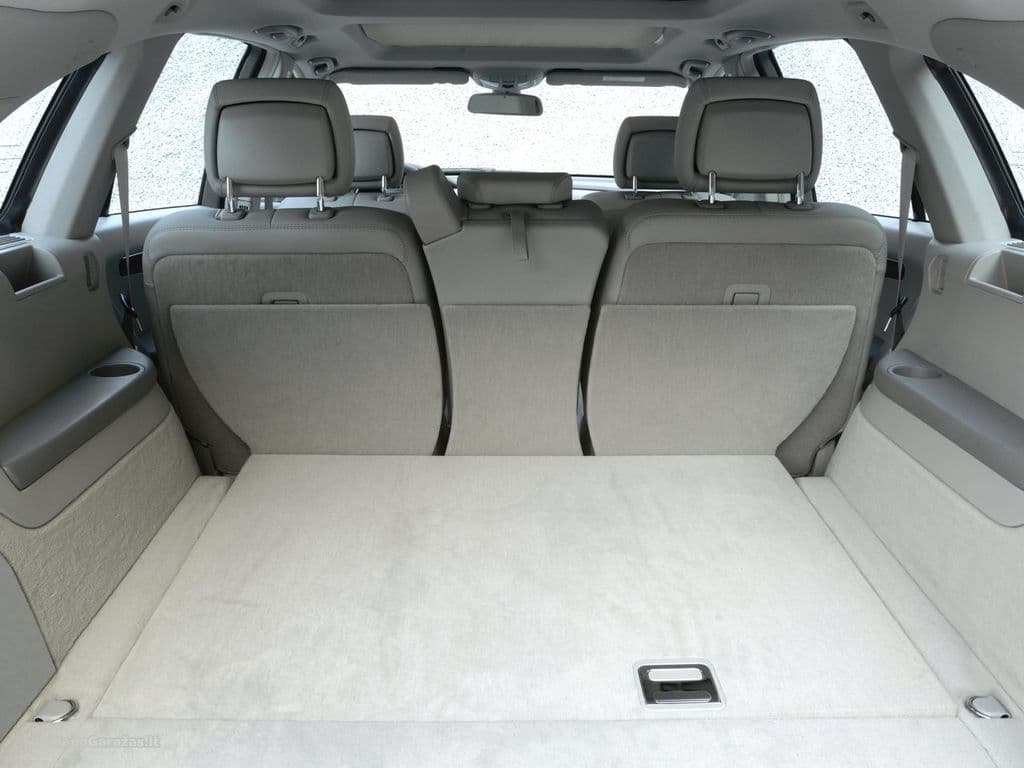

- Boot space (min)
- 1,118 l
- Boot space (max)
- 2,436 l
Wheels, brakes and chassis

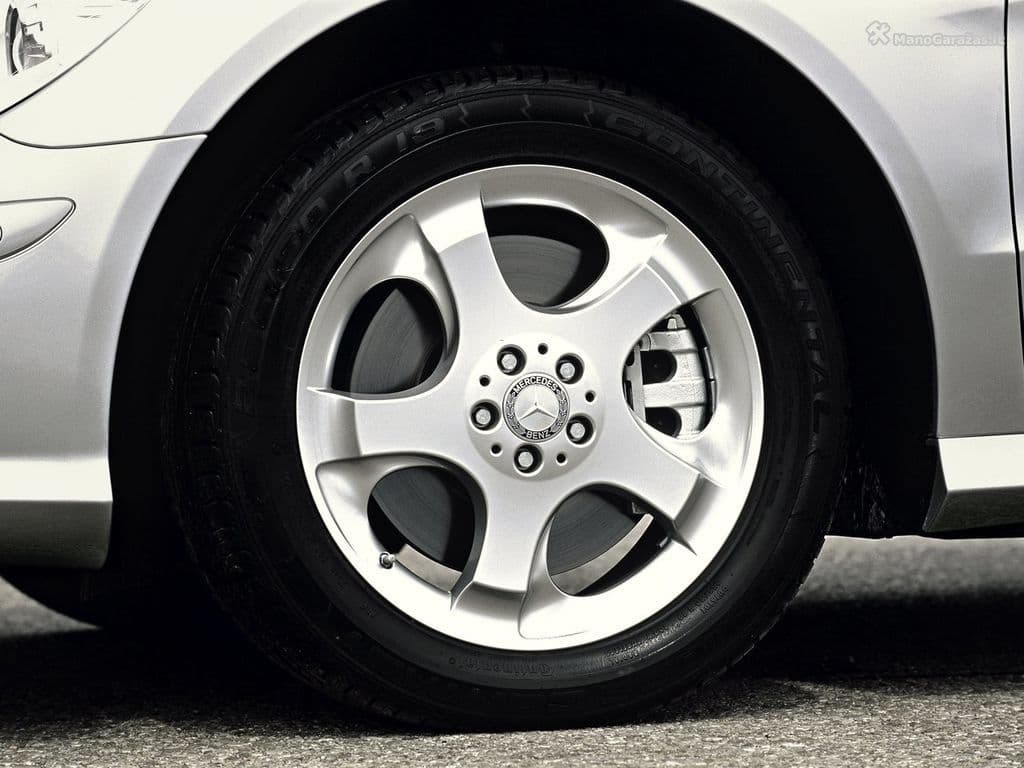

- Tyre size
- 255/55/R18
- Optional tyre sizes
- 285/45R19
- Rim size
- 7.5j x 17
- Wheel fitment (PCD, CB)
- DIA66.6 5x112
- Front brakes
- Ventilated discs
- Rear brakes
- Discs
- Front suspension
- Independent, coil spring
- Rear suspension
- Independent, coil spring
