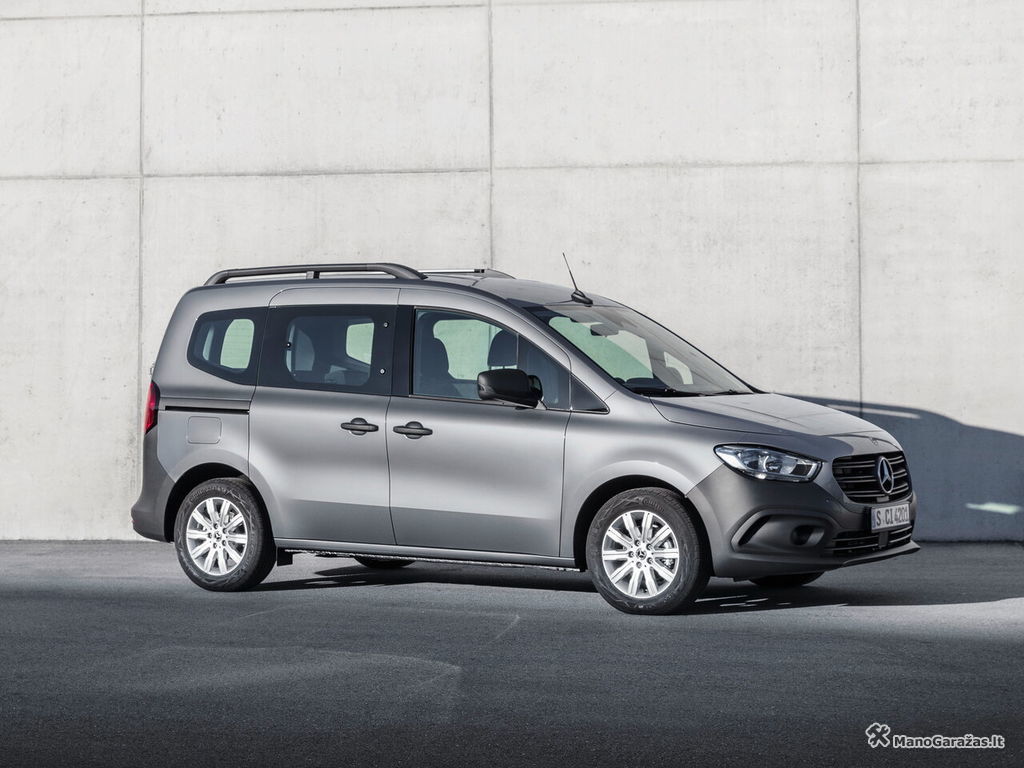

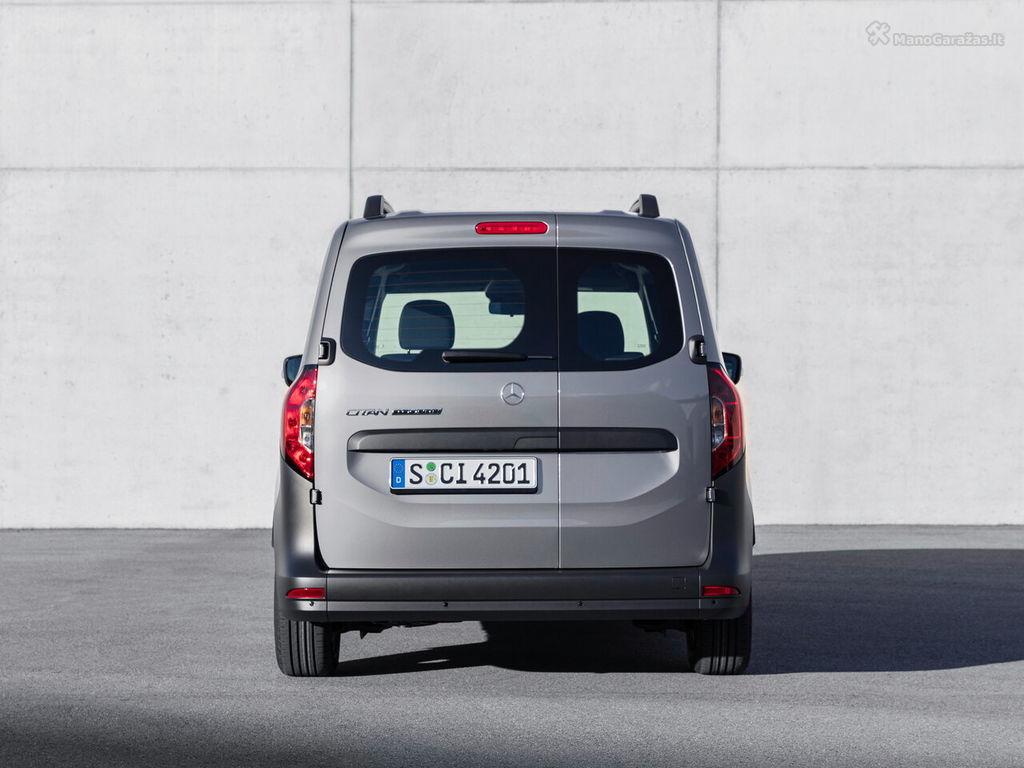

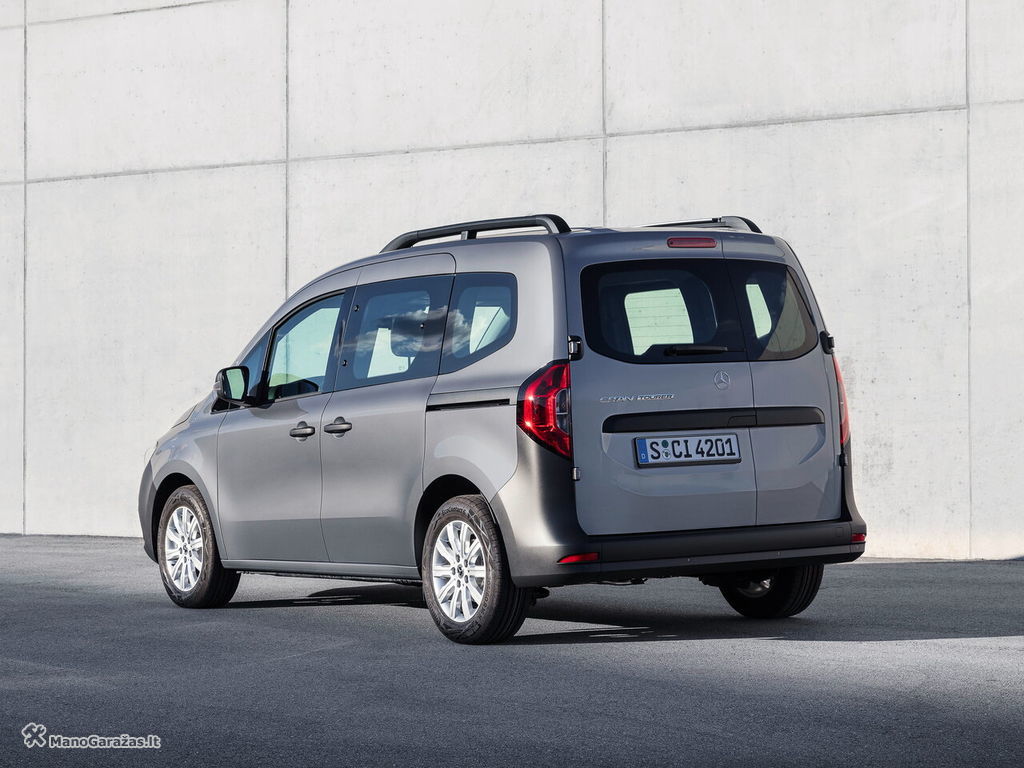

Mercedes-Benz Citan W415 II Minivan All photos (16)
Mercedes-Benz Citan W415 II · Minivan · from 2021

Mercedes-Benz Citan W415 110 1.3 MT 102 HP

DieselManual, 6 gearsFront driveEuro 6
Power
110 hp · 81 kW
Torque
300 Nm
0–100 km/h
12.5 s
Top speed
185 km/h
Fuel consumption
4.0 l/100 km
On a full tank
~1,350 km
Other versions of this body · 4
110 1.3 MT 102 HP 113 1.3 MT 131 HP 110 CDI 1.5 MT 95 HP eCitan EV AT 122 HP

Consumption and performance

manufacturer data
Top speed
185 km/h
Acceleration 0–100 km/h
12.5 s
Fuel tank
54 l

Engine

B16DTL · 1,598 cm³
Engine type
Diesel
Engine code
B16DTL
Displacement
1,598 cm³
Max power
81 kW / 110 hp
Torque
300 Nm at 1750 rpm
Fuel system
Diesel, Common rail
Turbo
Turbo
Engine position
In front
Cylinders
4
Valves per cylinder
4
Valvetrain
DOHC
Bore
79.7 mm
Stroke
80.1 mm
Compression ratio
16
Emission standard
Euro 6

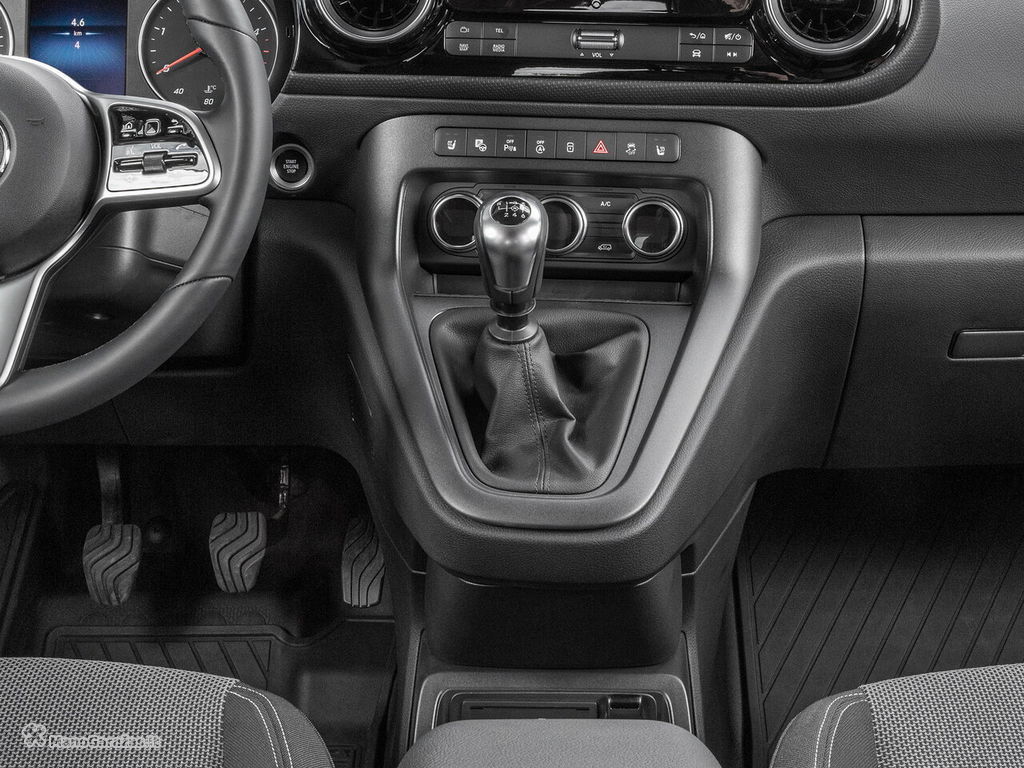

Transmission

Drive
Front
Gearbox
Manual
Gears
6

Dimensions and capacity

Body code S10 · class M
Body type
Minivan
Doors
5
Seats
5
Length
4,288 mm
Width
1,812 mm
Height
1,615 mm
Wheelbase
2,644 mm
Front track
1,488 mm
Rear track
1,509 mm
Ground clearance
140 mm

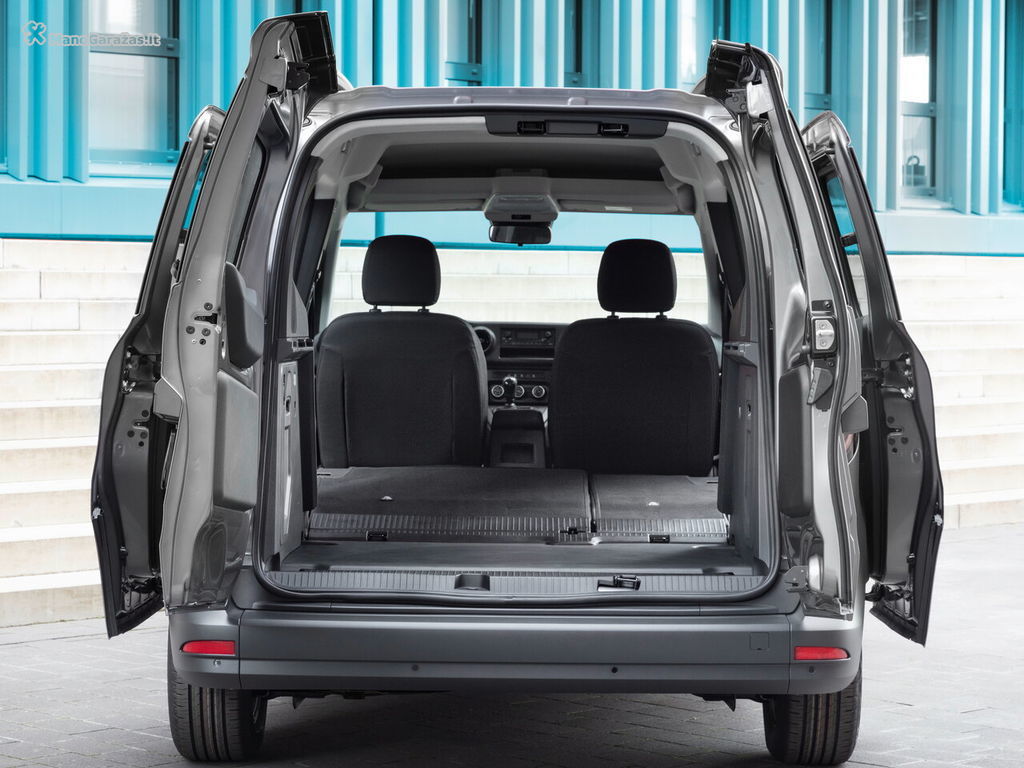

Boot space (min)
400 l
Boot space (max)
1,500 l
Turning circle
11.6 m

Wheels, brakes and chassis

Optional tyre sizes
225/40R18
Wheel fitment (PCD, CB)
DIA65.1 5x110
Wheel fasteners
Bolts M12x1.5
Wheel tightening torque
110 Nm
Front brakes
Ventilated discs
Rear brakes
Discs
Front suspension
Independent, coil spring
Rear suspension
Semi-independent, coil spring
