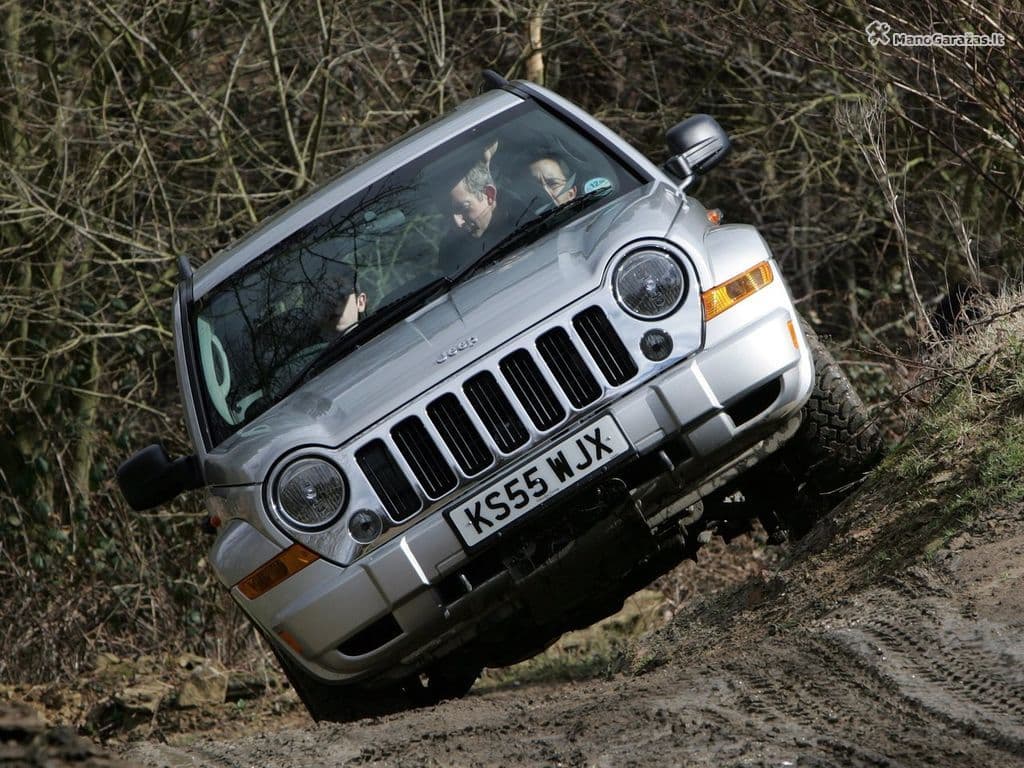

Jeep Cherokee III (KJ) Facelift SUV 5 doors All photos (3)
Jeep Cherokee III (KJ) Facelift · SUV 5 doors · 2004–2007

Jeep Cherokee 2.8 AT 163 HP AWD

DieselManual, 5 gearsRear drive
Power
116 hp · 85 kW
Torque
260 Nm
0–100 km/h
13.9 s
Top speed
154 km/h
Fuel consumption
9.2 l/100 km
On a full tank
~820 km
Other versions of this body · 10
2.5 MT 143 HP AWD 2.8 AT 150 HP AWD 2.8 AT 163 HP AWD 2.8 MT 163 HP AWD 3.7 AT 204 HP AWD 3.7 AT 210 HP AWD All versions →

Consumption and performance

manufacturer data
Top speed
154 km/h
Acceleration 0–100 km/h
13.9 s
Fuel tank
75 l

Engine

Y22DTH · 2,171 cm³
Engine type
Diesel
Engine code
Y22DTH
Displacement
2,171 cm³
Max power
85 kW / 116 hp
Torque
260 Nm at 1900 rpm
Fuel system
Diesel, Common rail
Turbo
Turbo
Engine position
In front
Cylinders
4
Valves per cylinder
4
Valvetrain
OHC
Bore
84 mm
Stroke
98 mm
Compression ratio
18.5

Transmission

Drive
Rear
Gearbox
Manual
Gears
5

Dimensions and capacity

Body code 6B · class J
Body type
SUV
Doors
5
Seats
5
Length
4,658 mm
Width
1,814 mm
Height
1,748 mm
Wheelbase
2,702 mm
Front track
1,515 mm
Rear track
1,520 mm
Ground clearance
205 mm
Max weight
2,450 kg
Boot space (min)
518 l
Boot space (max)
1,790 l

Wheels, brakes and chassis

Tyre size
235/75/R15
Optional tyre sizes
235/60R18, 235/70R16, 245/70R16, 255/55R18, 255/65R16, 255/70R16, 265/70R16
Rim size
6.5j x 15
Wheel fitment (PCD, CB)
DIA100 6x139.7
Front brakes
Discs
Rear brakes
Ventilated discs
Front suspension
Independent, coil spring
Rear suspension
Independent, coil spring
