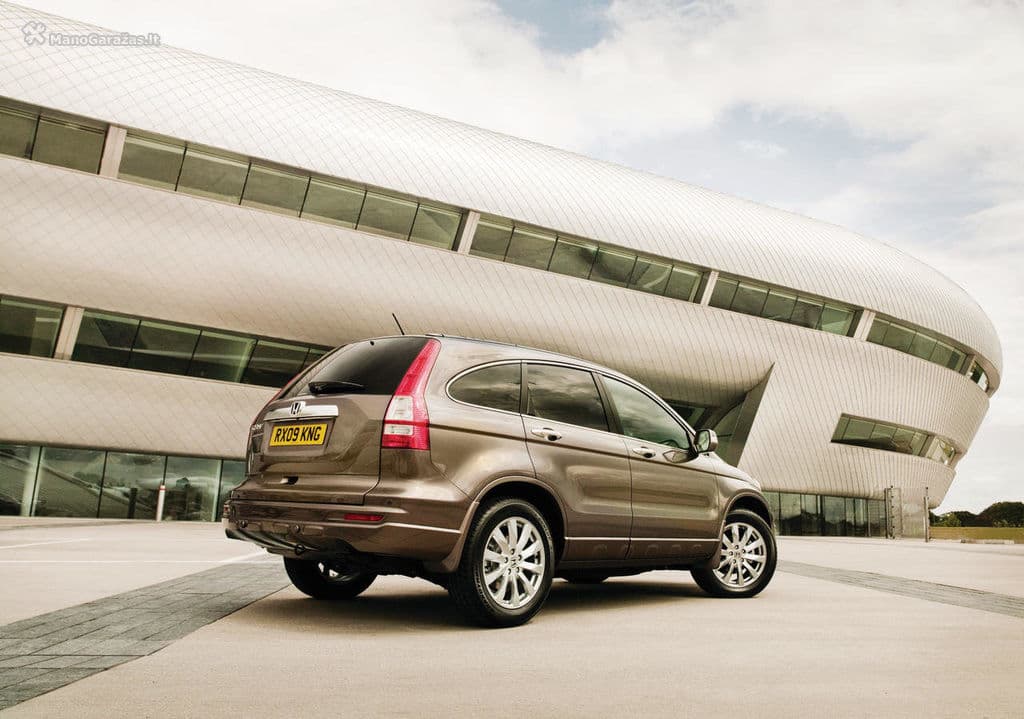

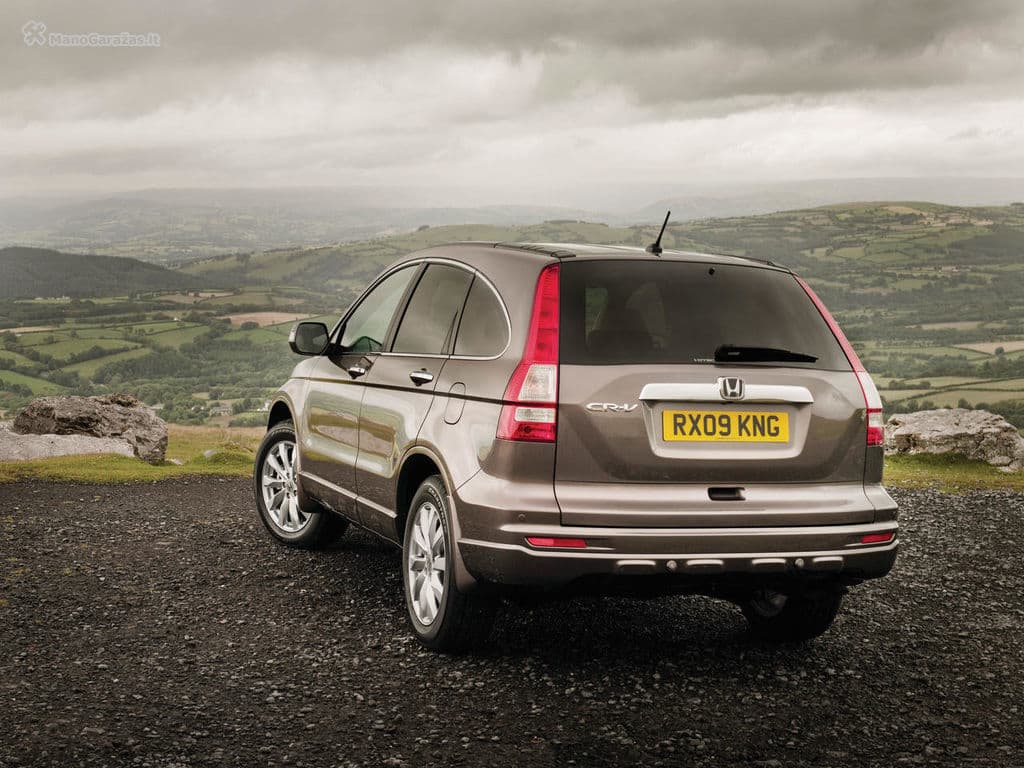

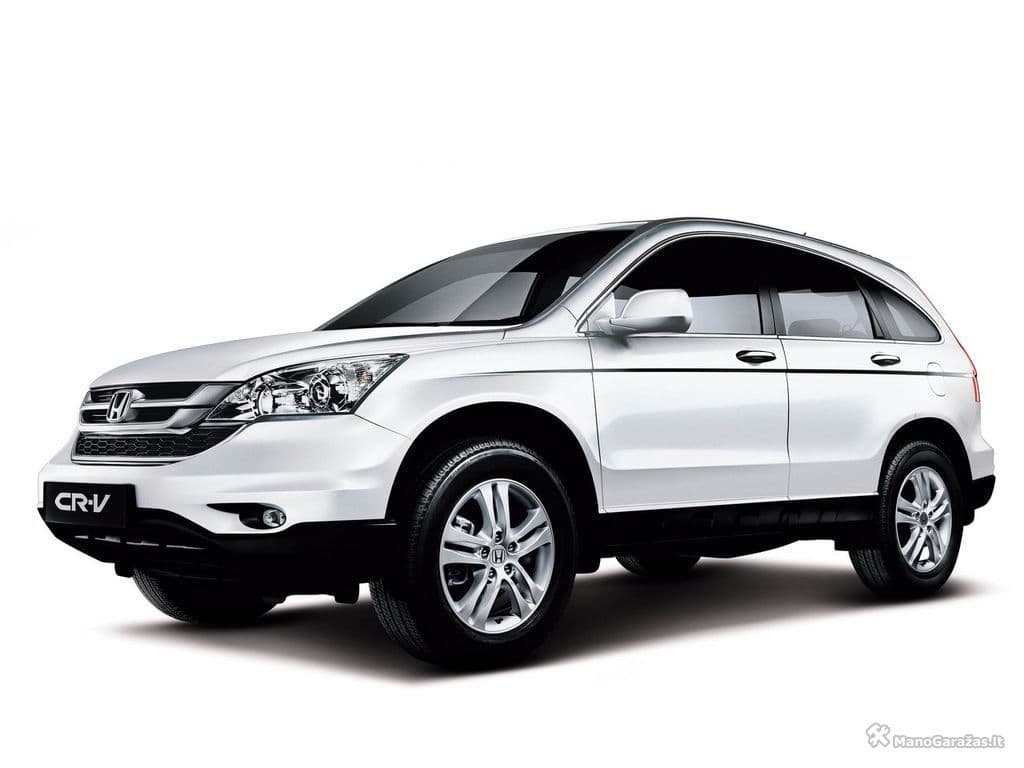

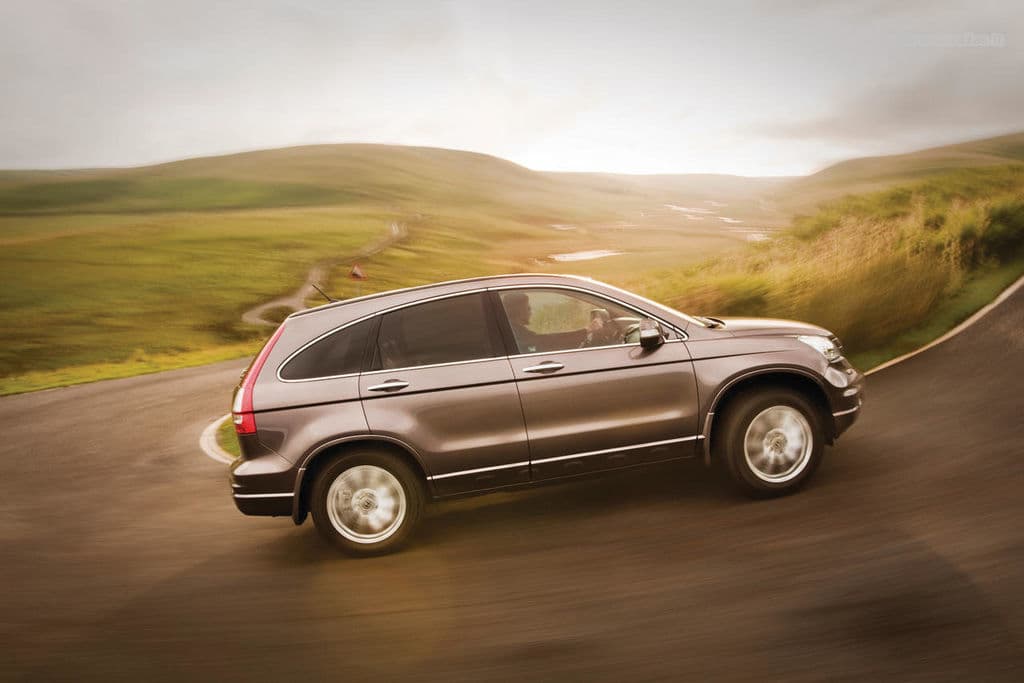

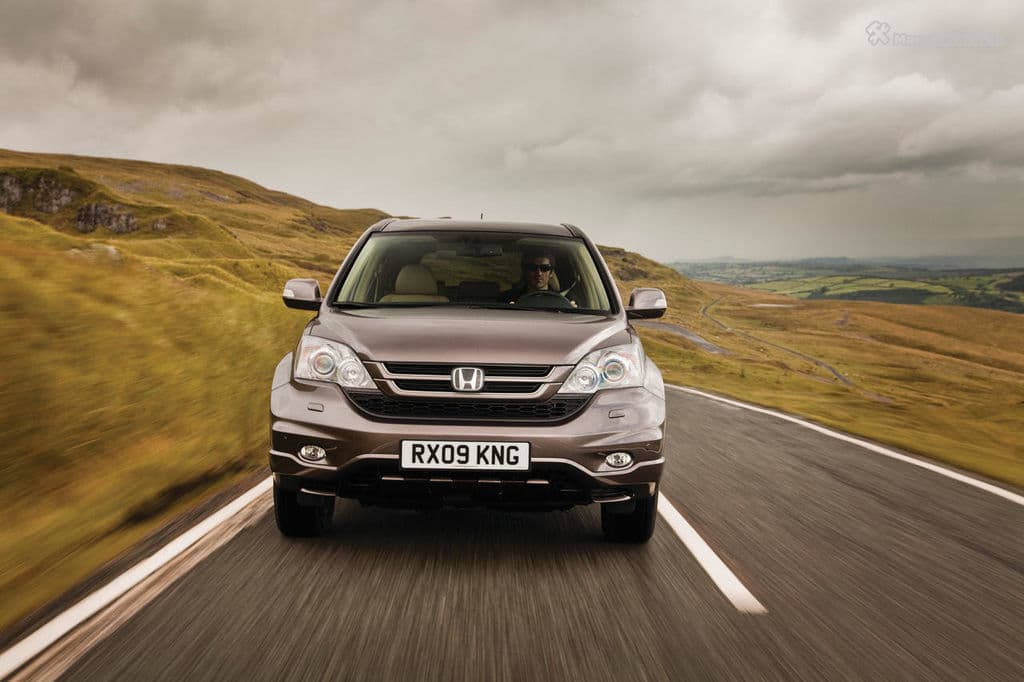

Honda CR-V III Facelift SUV 5 doors All photos (7)
Honda CR-V III Facelift · SUV 5 doors · 2009–2012

Honda CR-V 2.4 AT 166 HP AWD

DieselManual, 5 gearsAll drive
Power
140 hp · 103 kW
Torque
314 Nm
0–100 km/h
11.5 s
Top speed
155 km/h
Fuel consumption
12.6 l/100 km
On a full tank
~590 km
Other versions of this body · 14
2.2 MT 140 HP AWD 2.2 MT 150 HP AWD 2.4 AT 166 HP 2.4 AT 166 HP AWD 2.4 AT 182 HP 2.4 AT 182 HP AWD All versions →

Consumption and performance

manufacturer data
Top speed
155 km/h
Acceleration 0–100 km/h
11.5 s
Fuel tank
74 l

Engine

4M40T · 2,835 cm³
Engine type
Diesel
Engine code
4M40T
Displacement
2,835 cm³
Max power
103 kW / 140 hp
Torque
314 Nm at 2000 rpm
Fuel system
Diesel
Turbo
Turbo
Engine position
In front
Cylinders
4
Valves per cylinder
2
Valvetrain
SOHC
Bore
95 mm
Stroke
100 mm
Compression ratio
21

Transmission

Drive
All
Gearbox
Manual
Gears
5

Dimensions and capacity

class J
Body type
SUV
Doors
5
Seats
5
Length
4,530 mm
Width
1,775 mm
Height
1,730 mm
Wheelbase
2,725 mm
Front track
1,465 mm
Rear track
1,480 mm
Ground clearance
210 mm
Kerb weight
1,850 kg

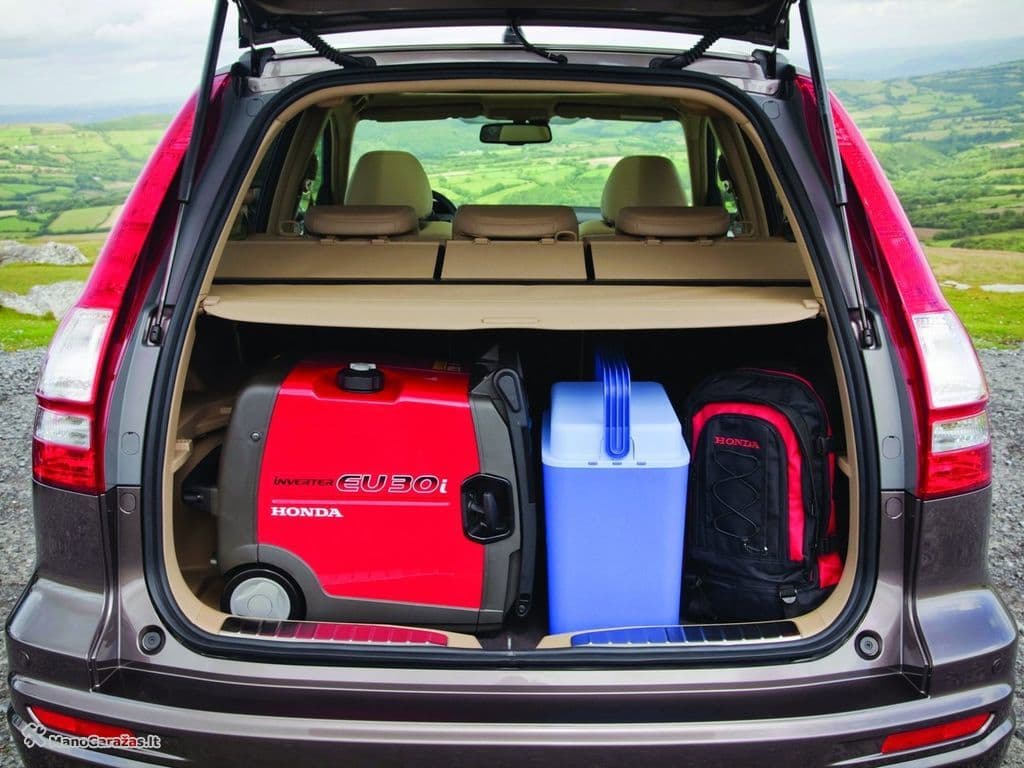

Boot space (min)
500 l
Boot space (max)
1,720 l

Wheels, brakes and chassis

Tyre size
265/70/R15
Optional tyre sizes
265/65R17, 265/70R16
Wheel fitment (PCD, CB)
DIA108.1 6x139.7
Wheel fasteners
Nuts M12x1.5
Tyre pressure
2.0-2.2 bar
Front brakes
Ventilated discs
Rear brakes
Discs
Rear suspension
Independent, coil spring
