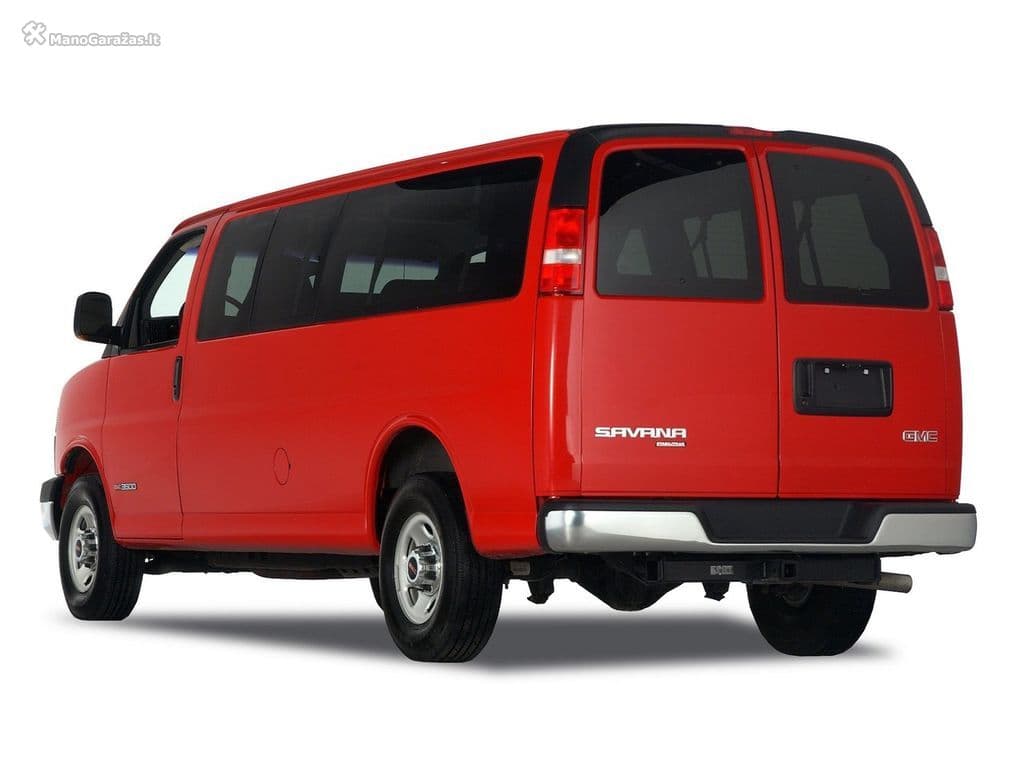

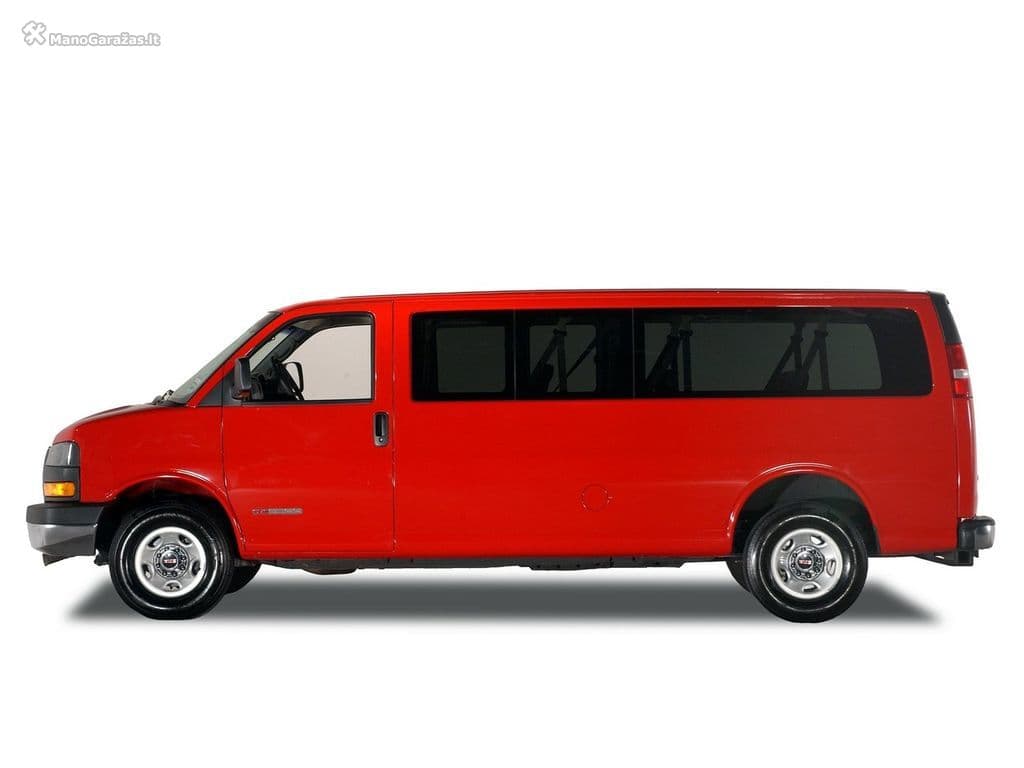

GMC Savana I Facelift Minivan All photos (3)
GMC Savana I Facelift · Minivan · from 2003

GMC Savana 6.6 AT 264 HP

DieselAutomatic, 6 gearsRear drive
Power
264 hp · 194 kW
Torque
721 Nm
Other versions of this body · 10
5.3 AT 301 HP AWD 6.0 AT 323 HP 6.0 AT 323 HP AWD 6.6 AT 253 HP 6.6 AT 264 HP 6.6 AT 407 HP All versions →

Consumption and performance

manufacturer data
Fuel tank
140 l

Engine

Duramax 6.6L V-8 turbo-diesel (LGH) · 6,599 cm³
Engine type
Diesel
Engine code
Duramax 6.6L V-8 turbo-diesel (LGH)
Displacement
6,599 cm³
Max power
194 kW / 264 hp
Torque
721 Nm at 1600 rpm
Fuel system
Diesel, Common rail
Turbo
Turbo
Engine position
V type
Cylinders
8
Valves per cylinder
4
Valvetrain
OHV
Bore
103 mm
Stroke
99 mm
Compression ratio
16

Transmission

Drive
Rear
Gearbox
Automatic
Gears
6

Dimensions and capacity

class M
Body type
Minivan
Doors
4
Seats
8
Length
5,692 mm
Width
2,012 mm
Height
2,126 mm
Wheelbase
3,429 mm
Front track
1,730 mm
Rear track
1,720 mm
Ground clearance
196 mm
Kerb weight
2,495 kg
Max weight
3,315 kg
Turning circle
15 m

Wheels, brakes and chassis

Tyre size
245/70/R17
Optional tyre sizes
255/70R17, 265/65R18
Wheel fitment (PCD, CB)
DIA116.7 8x165.1
Front brakes
Ventilated discs
Rear brakes
Discs
Front suspension
Independent, coil spring
