Geely Atlas I I SUV 5 doors All photos (14)
Geely Atlas I I · SUV 5 doors · 2016–2022

Geely Atlas I 2.0 MT 139 HP

GasolineManual, 6 gearsFront driveEuro 5
Power
139 hp · 102 kW
Torque
181 Nm
Top speed
185 km/h
Fuel consumption
8.1 l/100 km
On a full tank
~740 km
Other versions of this body · 9
1.8 AT 184 HP AWD 1.8 MT 163 HP 2.0 MT 139 HP 2.0 MT 141 HP 2.4 AT 148 HP 2.4 AT 148 HP AWD All versions →

Consumption and performance

manufacturer data
Top speed
185 km/h
Fuel tank
60 l

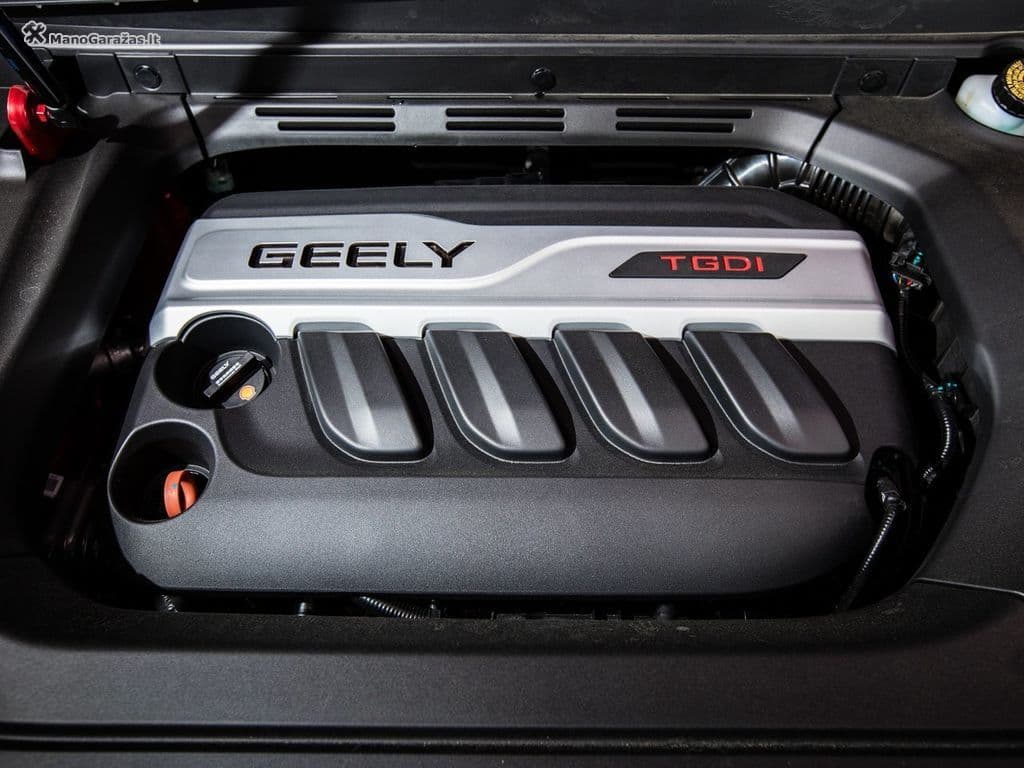

Engine

JLD-4G20 · 1,997 cm³
Engine type
Gasoline
Engine code
JLD-4G20
Displacement
1,997 cm³
Max power
102 kW / 139 hp
Torque
181 Nm at 3900 rpm
Fuel
A95
Fuel system
Multipoint injection
Turbo
No
Engine position
In front
Cylinders
4
Valves per cylinder
4
Valvetrain
DOHC
Bore
86 mm
Stroke
86 mm
Compression ratio
10.3
Emission standard
Euro 5

Transmission

Drive
Front
Gearbox
Manual
Gears
6

Dimensions and capacity

class J
Body type
SUV
Doors
5
Seats
5
Length
4,519 mm
Width
1,831 mm
Height
1,694 mm
Wheelbase
2,670 mm
Front track
1,560 mm
Rear track
1,550 mm
Ground clearance
163 mm
Kerb weight
1,645 kg
Max weight
1,945 kg
Boot space (min)
320 l
Boot space (max)
397 l

Wheels, brakes and chassis

Tyre size
225/65/R17 225/60/R18
Optional tyre sizes
225/60R18
Wheel fitment (PCD, CB)
DIA60.1 5x114.3
Front brakes
Ventilated discs
Rear brakes
Discs
Front suspension
Independent, coil spring
Rear suspension
Independent, coil spring
