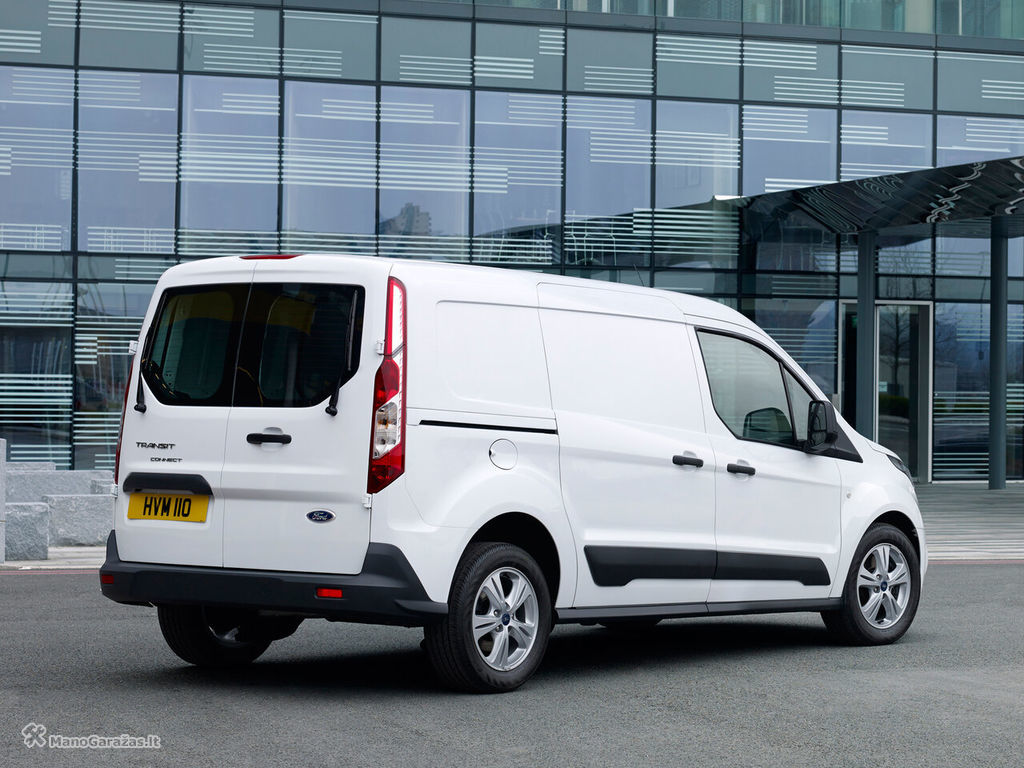

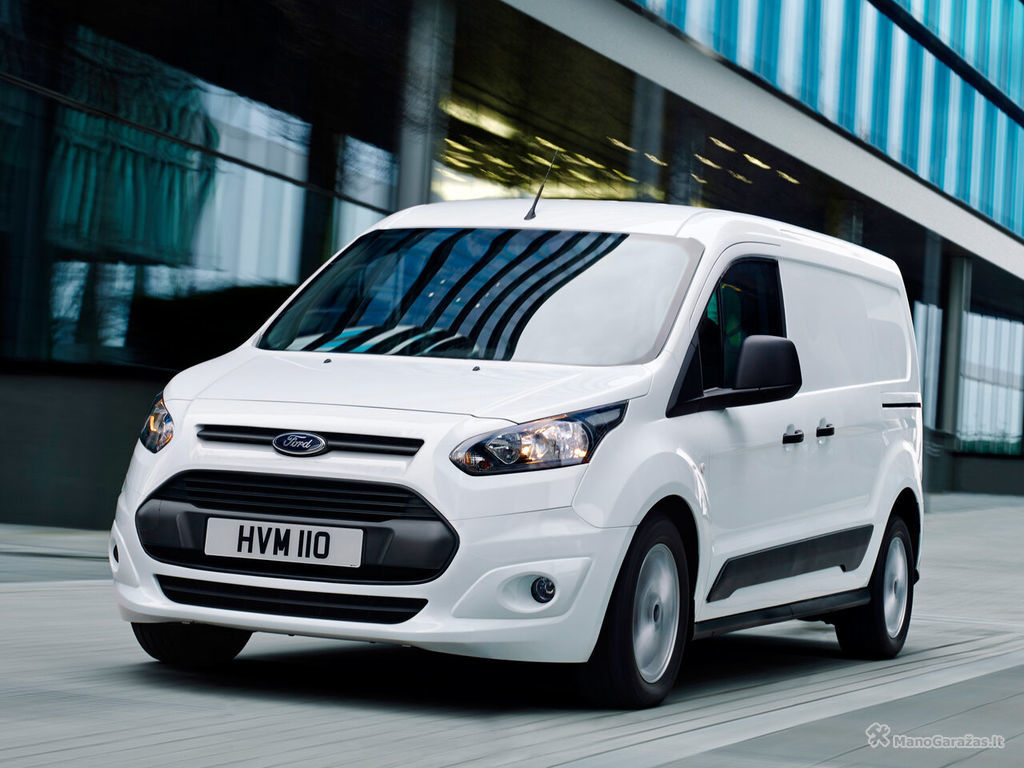

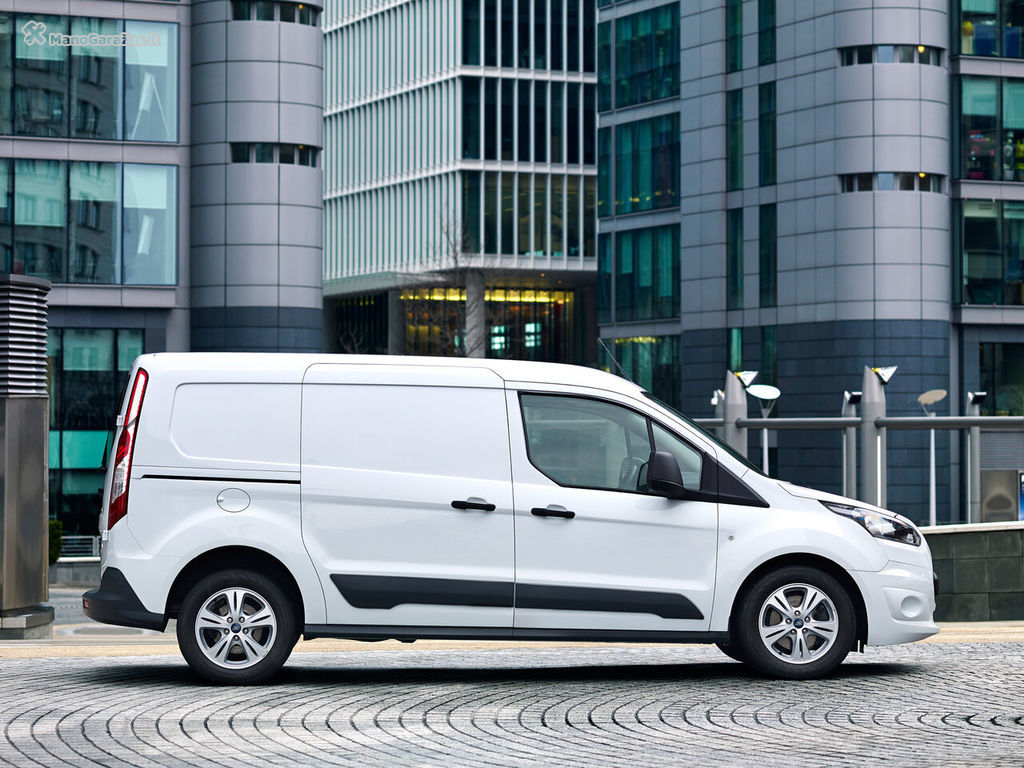

Ford Transit Connect II Van LWB All photos (3)
Ford Transit Connect II · Van LWB · 2013–2018

Ford Transit Connect LWB 2.5 AT 170 HP

GasolineManual, 5 gearsFront drive
Power
125 hp · 92 kW
Torque
170 Nm
0–100 km/h
10.5 s
Top speed
207 km/h
Fuel consumption
8.0 l/100 km
On a full tank
~650 km
Other versions of this body · 13
LWB 1.6 AT 150 HP LWB 1.6 AT 184 HP LWB 1.6 MT 115 HP LWB 1.6 MT 75 HP LWB 1.6 MT 95 HP LWB 2.5 AT 170 HP All versions →

Consumption and performance

manufacturer data
Top speed
207 km/h
Acceleration 0–100 km/h
10.5 s
Fuel tank
52 l

Engine

z18xe · 1,796 cm³
Engine type
Gasoline
Engine code
z18xe
Displacement
1,796 cm³
Max power
92 kW / 125 hp
Torque
170 Nm at 3800 rpm
Fuel
A95
Fuel system
Multipoint injection
Turbo
No
Engine position
In front
Cylinders
4
Valves per cylinder
4
Valvetrain
DOHC
Bore
80.5 mm
Stroke
88.2 mm
Compression ratio
10.5

Transmission

Drive
Front
Gearbox
Manual
Gears
5

Dimensions and capacity

class C
Body type
Cabrio
Doors
2
Seats
4
Length
4,267 mm
Width
1,709 mm
Height
1,390 mm
Wheelbase
2,606 mm
Front track
1,464 mm
Rear track
1,452 mm
Ground clearance
130 mm
Kerb weight
1,305 kg
Max weight
1,725 kg
Boot space (min)
330 l
Boot space (max)
330 l

Wheels, brakes and chassis

Tyre size
195/60/R15
Front brakes
Ventilated discs
Rear brakes
Discs
Front suspension
Independent, coil spring
Rear suspension
Semi-independent, coil spring
