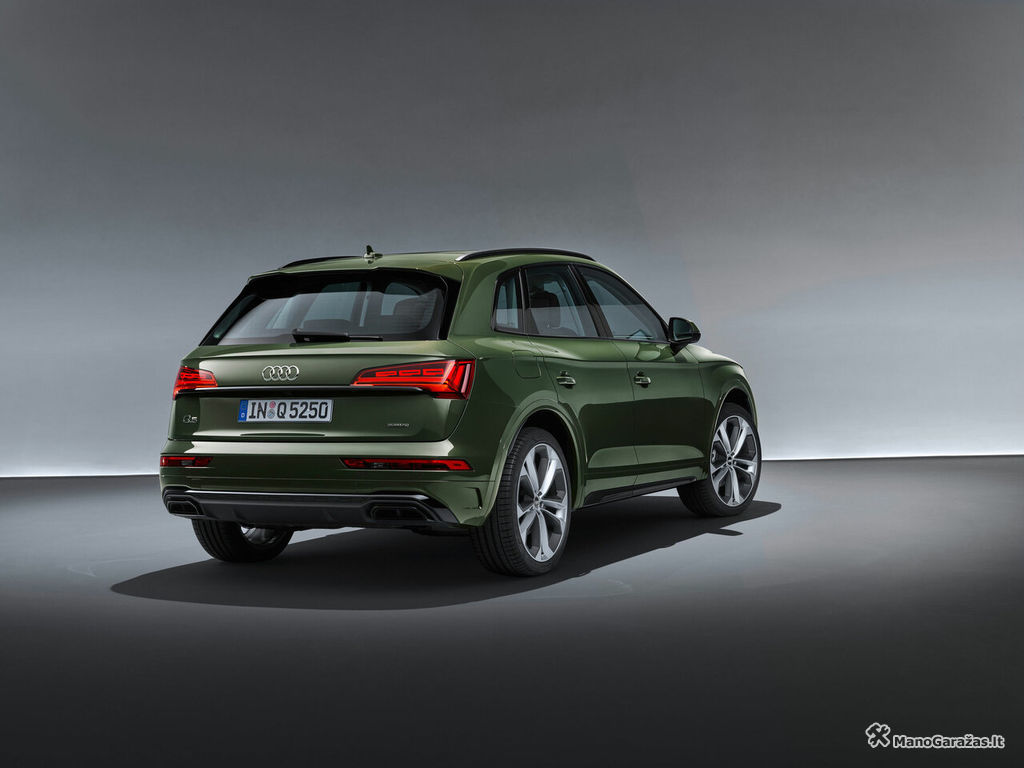

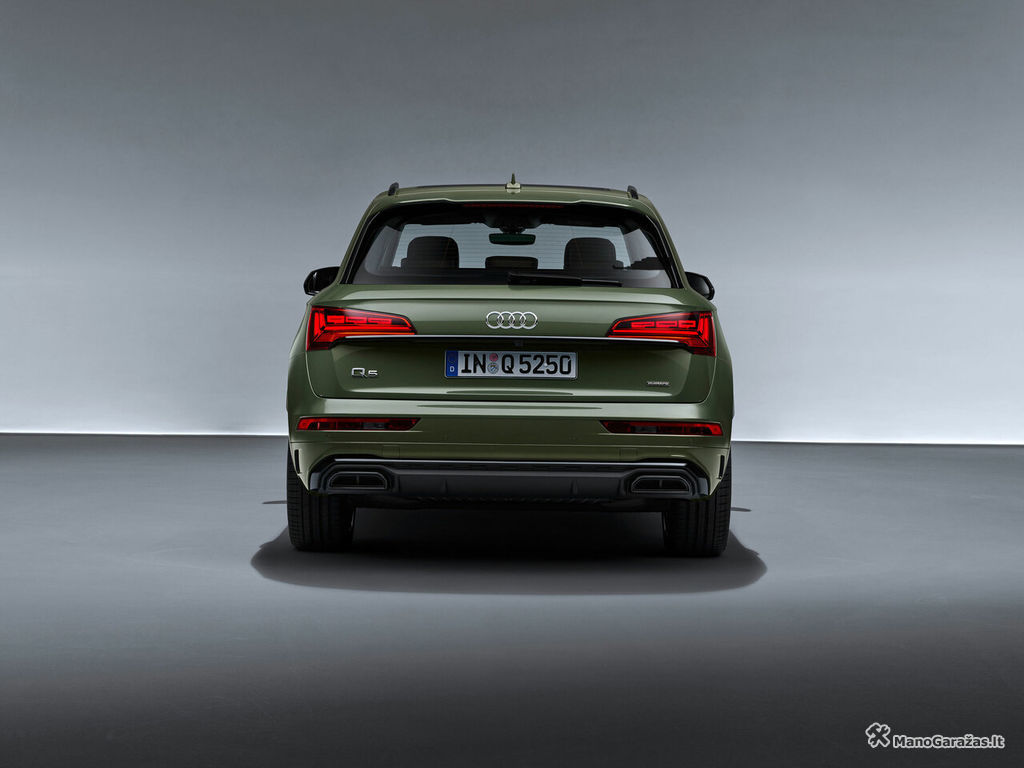

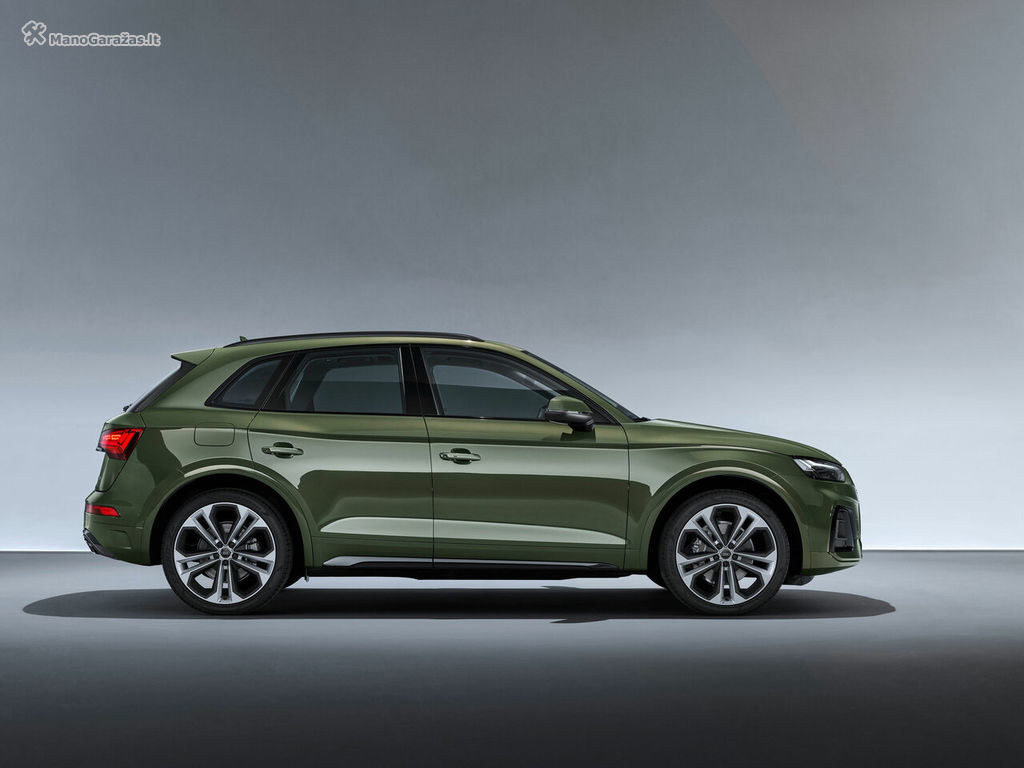

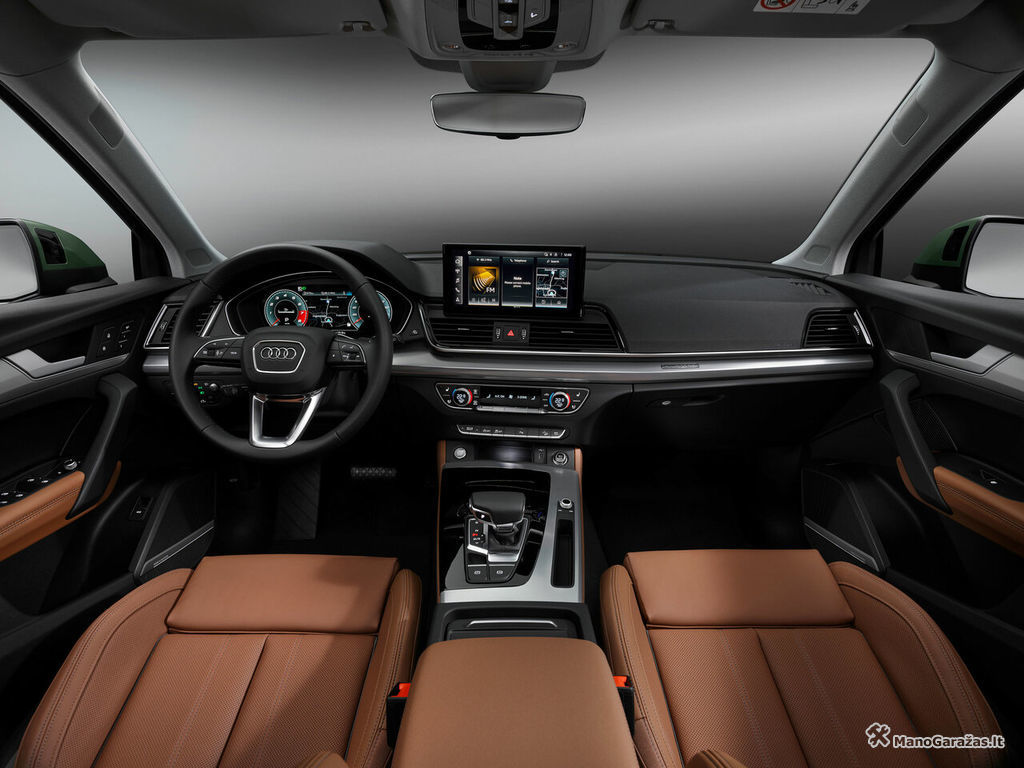

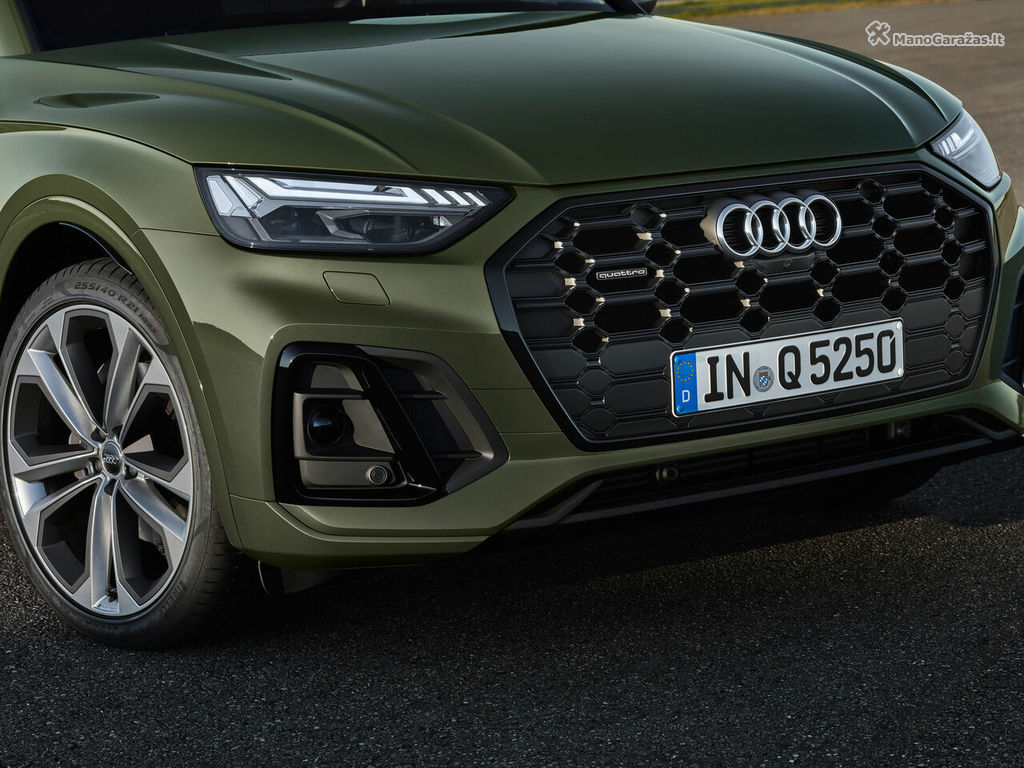

Audi Q5 II (FY) Facelift SUV 5 doors All photos (13)
Audi Q5 II (FY) Facelift · SUV 5 doors · from 2020

Audi Q5 40 TDI 2.0 AMT 204 HP AWD

GasolineAutomatic, 8 gearsAll driveEuro 6
Power
192 hp · 141 kW
Torque
280 Nm
0–100 km/h
7.2 s
Top speed
222 km/h
Fuel consumption
6.6 l/100 km
On a full tank
~770 km
Other versions of this body · 9
35 TDI 2.0 AMT 163 HP 40 TDI 2.0 AMT 204 HP AWD 40 TFSI 2.0 AMT 204 HP AWD 45 TFSI 2.0 AMT 249 HP AWD 45 TFSI 2.0 AMT 265 HP AWD 50 TFSI e 2.0 AMT 299 HP AWD All versions →

Consumption and performance

manufacturer data
Top speed
222 km/h
Acceleration 0–100 km/h
7.2 s
Fuel tank
51 l

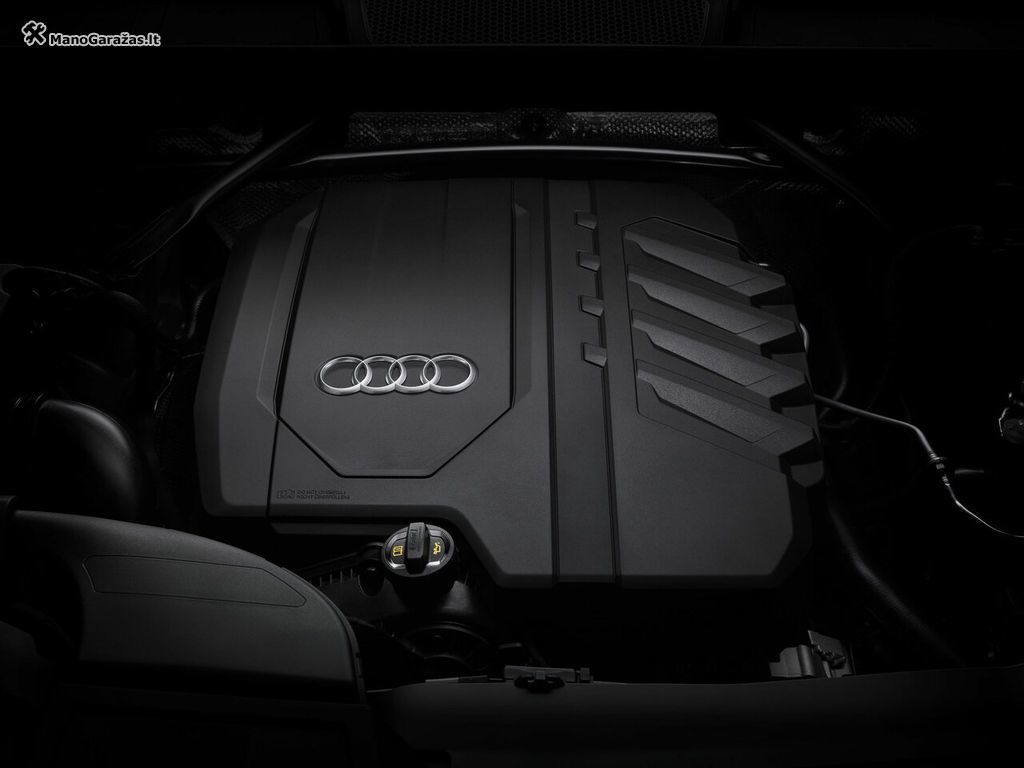

Engine

B48A20A · 1,998 cm³
Engine type
Gasoline
Engine code
B48A20A
Displacement
1,998 cm³
Max power
141 kW / 192 hp
Torque
280 Nm at 1350 rpm
Fuel
A95
Fuel system
Direct injection
Turbo
Turbo
Engine position
In front
Cylinders
4
Valves per cylinder
4
Valvetrain
DOHC
Bore
82 mm
Stroke
94.6 mm
Compression ratio
11
Emission standard
Euro 6
CO₂ emissions
150 g/km

Transmission

Drive
All
Gearbox
Automatic
Gears
8

Dimensions and capacity

class J
Body type
SUV
Doors
5
Seats
5
Length
4,299 mm
Width
1,822 mm
Height
1,557 mm
Wheelbase
2,670 mm
Front track
1,563 mm
Rear track
1,565 mm
Ground clearance
165 mm
Kerb weight
1,530 kg
Max weight
2,120 kg
Boot space (min)
450 l
Boot space (max)
1,390 l
Turning circle
11.4 m

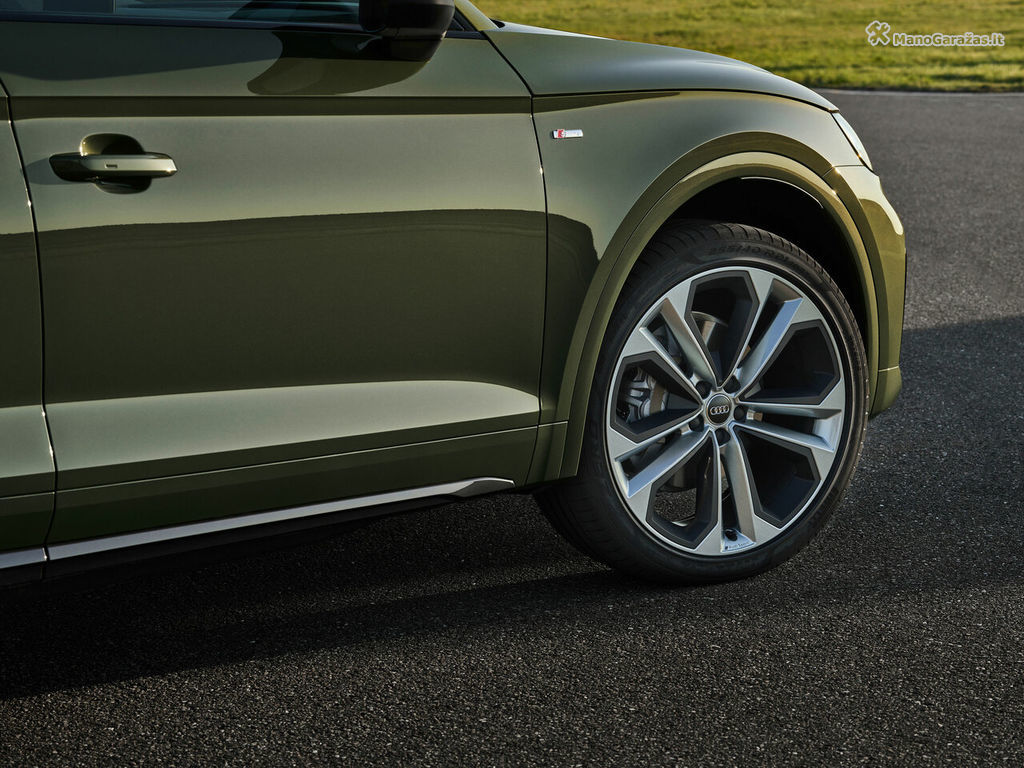

Wheels, brakes and chassis

Tyre size
225/55/R17
Rim size
7.5Jx17
Wheel fitment (PCD, CB)
DIA66.6 5x112
Wheel fasteners
Bolts M14x1.25
Wheel tightening torque
140 Nm
Tyre pressure
2.2-2.5 bar
Front brakes
Ventilated discs
Rear brakes
Discs
Front suspension
Independent, coil spring
Rear suspension
Independent, coil spring
