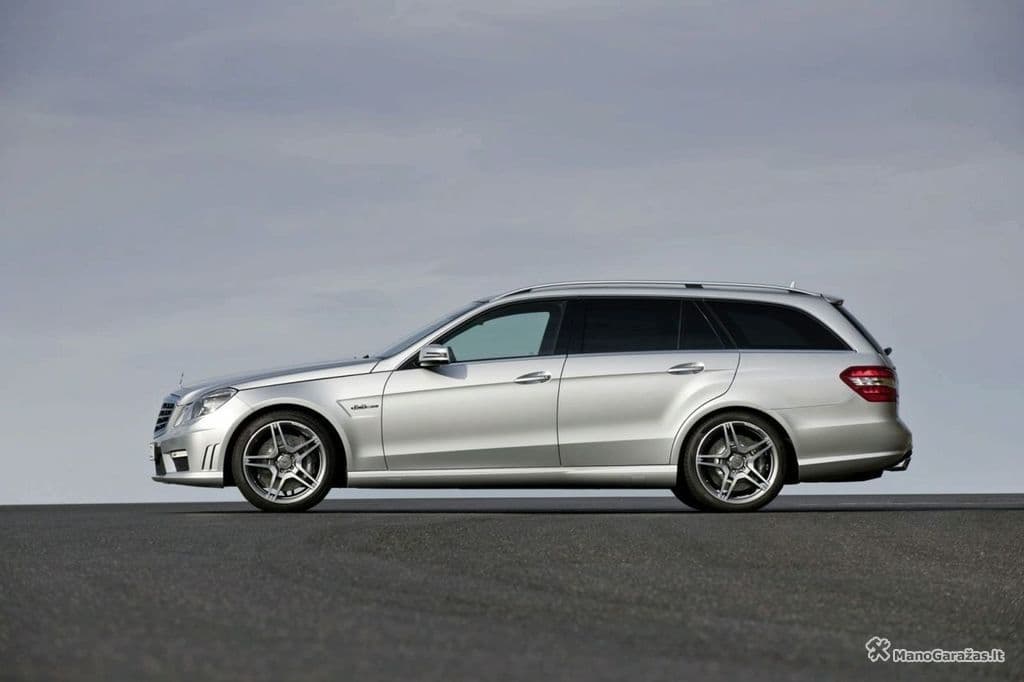

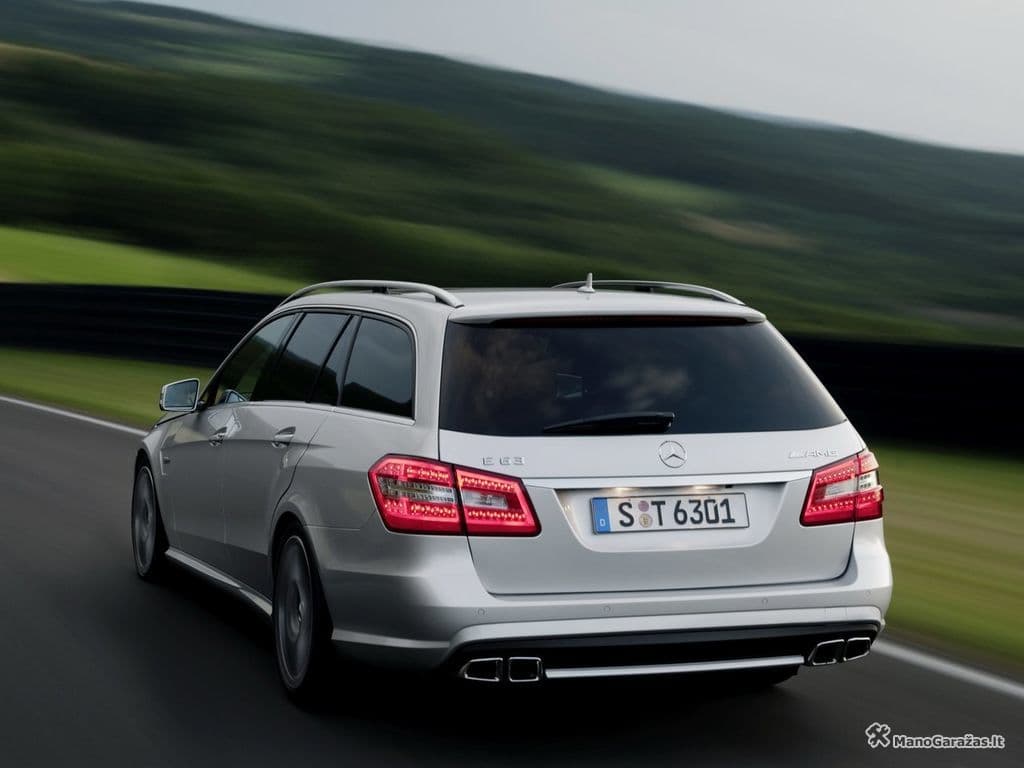

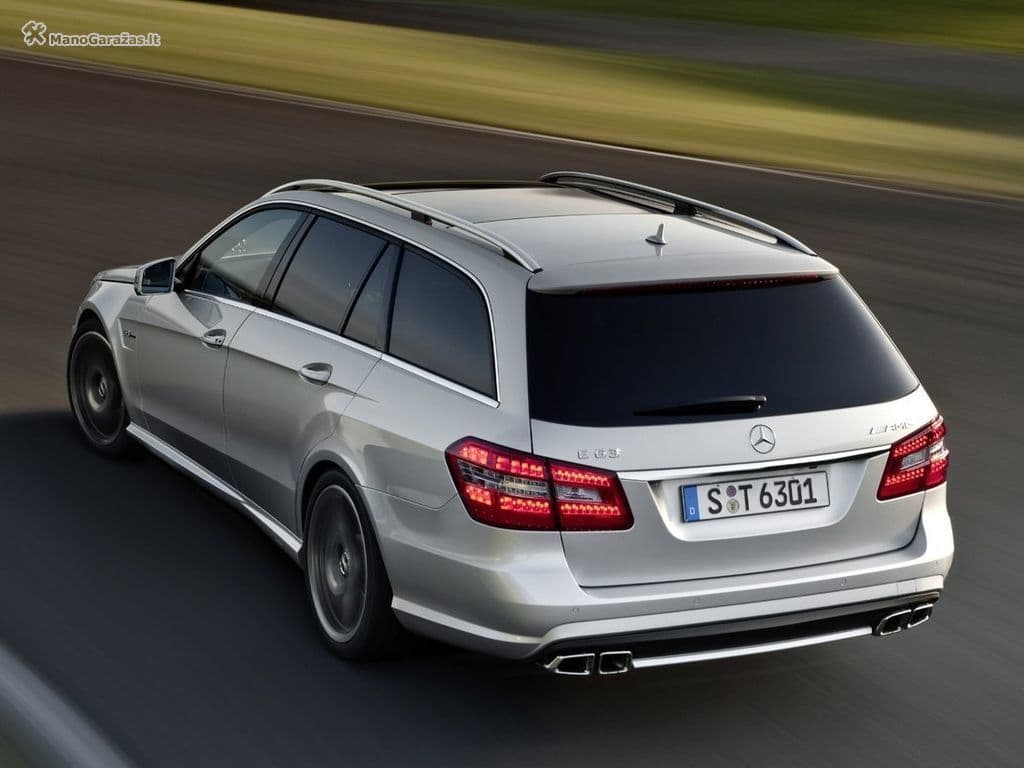

Mercedes-Benz E class AMG IV (W212, S212) · Estate (wagon) 5 doors · 2009–2013
Mercedes-Benz E class AMG 63 AMG 6.2 AT 525 HP
- Power
- 525 hp · 386 kW
- Torque
- 630 Nm
- 0–100 km/h
- 4.4 s
- Top speed
- 250 km/h
- Fuel consumption
- 14.3 l/100 km
- On a full tank
- ~560 km
Consumption and performance
- Top speed
- 250 km/h
- Acceleration 0–100 km/h
- 4.4 s
- Fuel tank
- 80 l

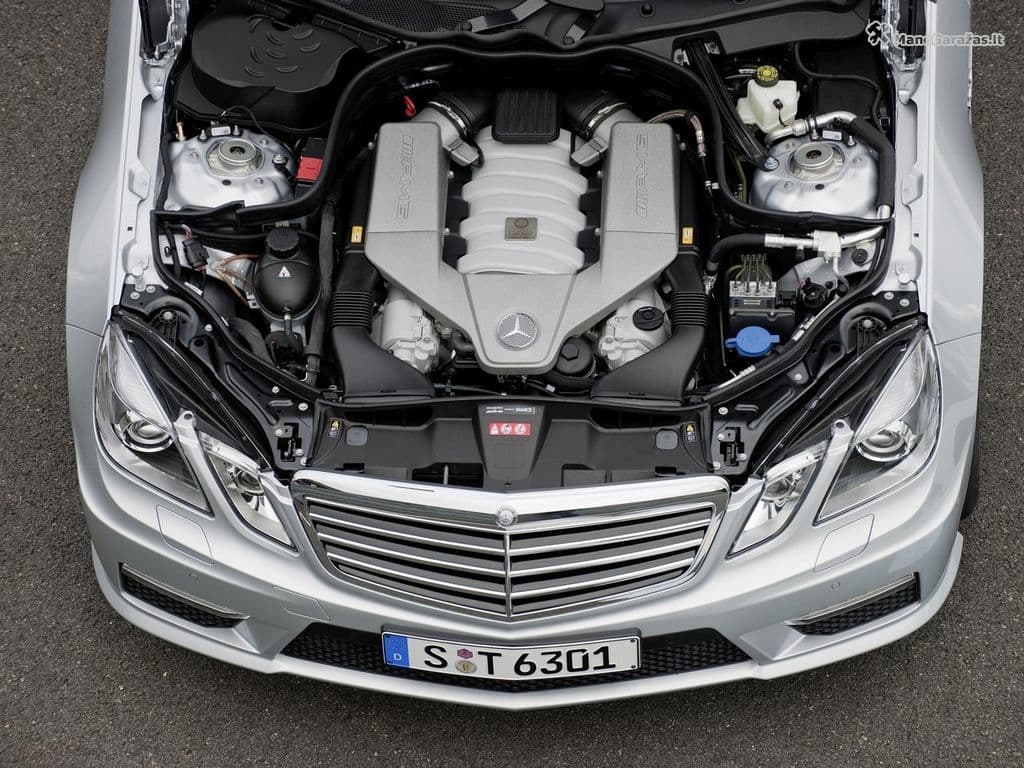

Engine
- Engine type
- Gasoline
- Engine code
- M156.984
- Displacement
- 6,208 cm³
- Max power
- 386 kW / 525 hp
- Torque
- 630 Nm at 2800 rpm
- Fuel
- A95
- Fuel system
- Multipoint injection
- Turbo
- No
- Engine position
- V type
- Cylinders
- 8
- Valves per cylinder
- 4
- Valvetrain
- DOHC
- Bore
- 102.2 mm
- Stroke
- 94.6 mm
- Compression ratio
- 11.3

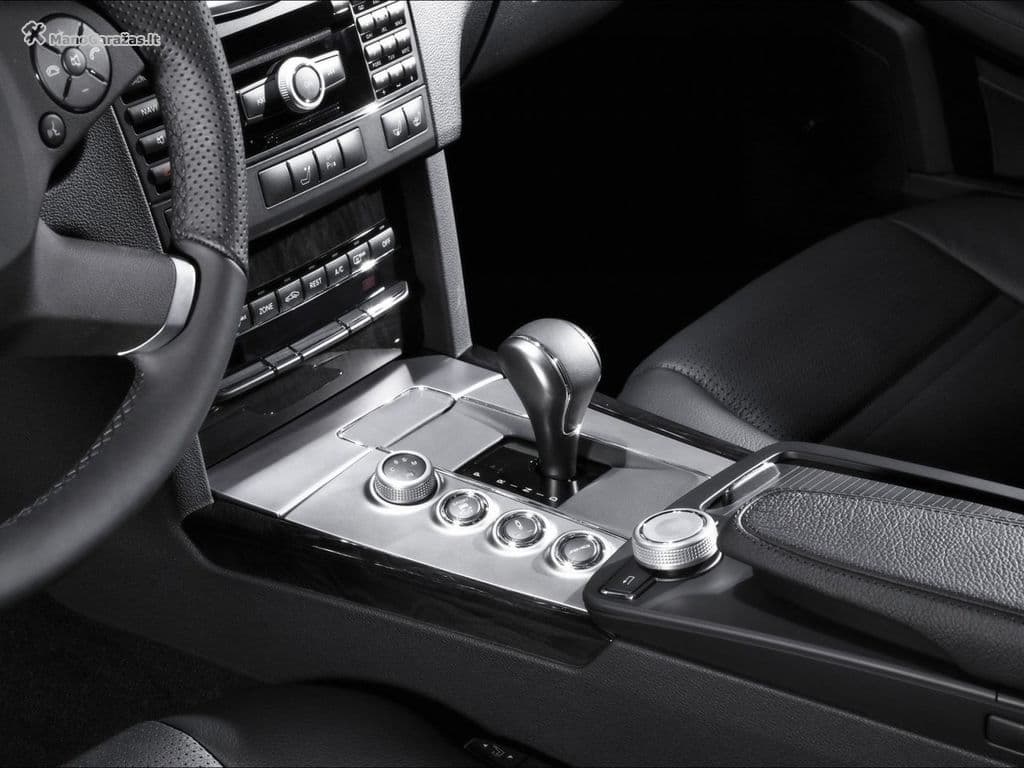

Transmission
- Drive
- Rear
- Gearbox
- Automatic
- Gears
- 7
Dimensions and capacity
- Body type
- Estate (wagon)
- Doors
- 5
- Seats
- 5
- Length
- 4,895 mm
- Width
- 1,872 mm
- Height
- 1,512 mm
- Wheelbase
- 2,874 mm
- Front track
- 1,641 mm
- Rear track
- 1,604 mm
- Ground clearance
- 160 mm
- Kerb weight
- 1,840 kg
- Max weight
- 2,390 kg
- Boot space (min)
- 695 l
- Boot space (max)
- 1,220 l
- Turning circle
- 11.25 m
Wheels, brakes and chassis
- Tyre size
- 255/40/R18 285/35/R18
- Optional tyre sizes
- 285/30R19, 285/35R18
- Wheel fitment (PCD, CB)
- DIA66.5 5x112
- Wheel fasteners
- Bolts M14x1.5
- Tyre pressure
- 2.3-2.8 bar
- Front brakes
- Ventilated discs
- Rear brakes
- Ventilated discs
- Front suspension
- Independent, coil spring
- Rear suspension
- Independent, air suspension
