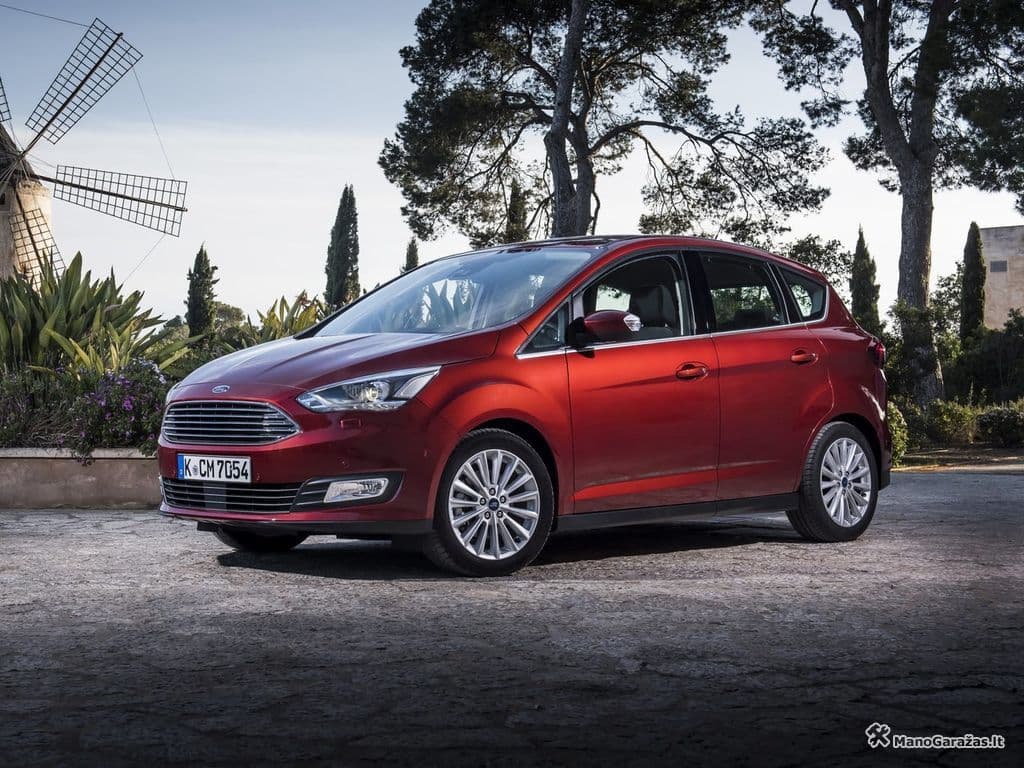

Ford C-MAX II Facelift Minivan

2015–2019 · 20 versions

Power: 85–188 hp (63–138 kW)
Fuel: Gasoline, Diesel, Plug-in hybrid
Gearbox: Manual, Robot, Automatic, Variator
Drive: Front
Fuel consumption: 3.8–6.5 l/100 km
0–100 km/h: from 8.4 s
Top speed: 165–213 km/h

The Ford C-MAX II Facelift minivan was made in 2015–2019. The catalogue lists 20 versions (gasoline, diesel, plug-in hybrid) with 85–188 hp (63–138 kW). According to the manufacturer it uses 3.8–6.5 l/100 km on average and reaches 100 km/h in 8.4–15.9 s.

Versions

20 · the arrow opens the version's details, a column title sorts

All Gasoline Diesel Plug-in hybrid

More	Version	Power	Fuel	Gearbox	Drive	0–100 km/h	Consumption
	1.0 MT 100 HP	100 hp 74 kW	Gasoline	Manual	Front	12.9 s	5.1 l
Engine 998 cm³ · M2DA Torque 170 Nm at 1400 rpm Top speed 174 km/h Urban 6.2 l/100 km Extra-urban 4.5 l/100 km Fuel tank 53 l Kerb weight 1,391 kg Ground clearance 140 mm CO₂ 117 g/km Emission standard Euro 6 Tyres 205/55/R16 215/55/R16 215/50/R17 235/40/R18 Full specifications →
	1.0 MT 125 HP	125 hp 92 kW	Gasoline	Manual	Front	11.4 s	5.1 l
Engine 998 cm³ · M1DA Torque 170 Nm at 1400 rpm Top speed 187 km/h Urban 6.2 l/100 km Extra-urban 4.5 l/100 km Fuel tank 53 l Kerb weight 1,391 kg Ground clearance 140 mm CO₂ 117 g/km Emission standard Euro 6 Tyres 205/55/R16 215/55/R16 215/50/R17 235/40/R18 Full specifications →
	1.5 AMT 120 HP	120 hp 88 kW	Diesel	Robot	Front	12.4 s	4.6 l
Engine 1,499 cm³ · XWDB, XWDA Torque 270 Nm at 1750 rpm Top speed 182 km/h Urban 5.4 l/100 km Extra-urban 4.1 l/100 km Fuel tank 53 l Kerb weight 1,472 kg Ground clearance 140 mm CO₂ 120 g/km Emission standard Euro 6 Tyres 205/55/R16 215/55/R16 215/50/R17 235/40/R18 Full specifications →
	Start-Stop 1.5 AMT 120 HP	120 hp 88 kW	Diesel	Robot	Front	12.4 s	4.4 l
Engine 1,499 cm³ · XWDB, XWDA Torque 270 Nm at 1750 rpm Top speed 182 km/h Urban 5.0 l/100 km Extra-urban 4.1 l/100 km Fuel tank 53 l Kerb weight 1,472 kg Ground clearance 140 mm CO₂ 115 g/km Emission standard Euro 6 Tyres 205/55/R16 215/55/R16 215/50/R17 235/40/R18 Full specifications →
	1.5 AT 150 HP	150 hp 110 kW	Gasoline	Automatic	Front	10.2 s	6.5 l
Engine 1,499 cm³ · M8DB Torque 240 Nm at 1600 rpm Top speed 200 km/h Urban 8.9 l/100 km Extra-urban 5.1 l/100 km Fuel tank 53 l Kerb weight 1,413 kg Ground clearance 140 mm CO₂ 149 g/km Emission standard Euro 6 Tyres 205/55/R16 215/55/R16 215/50/R17 235/40/R18 Full specifications →
	1.5 AT 182 HP	182 hp 134 kW	Gasoline	Automatic	Front	9.2 s	6.5 l
Engine 1,499 cm³ · M9DB Torque 240 Nm at 1600 rpm Top speed 213 km/h Urban 8.9 l/100 km Extra-urban 5.1 l/100 km Fuel tank 53 l Kerb weight 1,413 kg Ground clearance 140 mm CO₂ 149 g/km Emission standard Euro 6 Tyres 205/55/R16 215/55/R16 215/50/R17 235/40/R18 Full specifications →
	1.5 MT 105 HP	105 hp 77 kW	Diesel	Manual	Front	12.1 s	3.8 l
Engine 1,499 cm³ · AEDA Top speed 184 km/h Urban 4.3 l/100 km Extra-urban 3.5 l/100 km Fuel tank 53 l Kerb weight 1,405 kg Ground clearance 140 mm CO₂ 99 g/km Emission standard Euro 6 Tyres 205/55/R16 215/55/R16 215/50/R17 235/40/R18 Full specifications →
	1.5 MT 120 HP	120 hp 88 kW	Diesel	Manual	Front	11.3 s	4.2 l
Engine 1,499 cm³ · XWDA, XWDB Torque 270 Nm at 1750 rpm Top speed 184 km/h Urban 5.1 l/100 km Extra-urban 3.7 l/100 km Fuel tank 53 l Kerb weight 1,403 kg Ground clearance 140 mm CO₂ 110 g/km Emission standard Euro 6 Tyres 205/55/R16 215/55/R16 215/50/R17 235/40/R18 Full specifications →
	Start-Stop 1.5 MT 120 HP	120 hp 88 kW	Diesel	Manual	Front	11.3 s	4.1 l
Engine 1,499 cm³ · XWDB, XWDA Torque 270 Nm at 1750 rpm Top speed 184 km/h Urban 4.7 l/100 km Extra-urban 3.7 l/100 km Fuel tank 53 l Kerb weight 1,403 kg Ground clearance 140 mm CO₂ 105 g/km Emission standard Euro 6 Tyres 205/55/R16 215/55/R16 215/50/R17 235/40/R18 Full specifications →
	1.5 MT 150 HP	150 hp 110 kW	Gasoline	Manual	Front	9.4 s	6.1 l
Engine 1,499 cm³ · M8DB Torque 240 Nm at 1600 rpm Top speed 204 km/h Urban 7.8 l/100 km Extra-urban 5.1 l/100 km Fuel tank 53 l Kerb weight 1,394 kg Ground clearance 140 mm CO₂ 139 g/km Emission standard Euro 6 Tyres 205/55/R16 215/55/R16 215/50/R17 235/40/R18 Full specifications →
	1.5 MT 182 HP	182 hp 134 kW	Gasoline	Manual	Front	8.4 s	6.1 l
Engine 1,499 cm³ · M9DB Torque 240 Nm at 1600 rpm Urban 7.8 l/100 km Extra-urban 5.1 l/100 km Fuel tank 53 l Kerb weight 1,394 kg Ground clearance 140 mm CO₂ 139 g/km Emission standard Euro 6 Tyres 205/55/R16 215/55/R16 215/50/R17 235/40/R18 Full specifications →
	1.5 MT 95 HP	95 hp 70 kW	Diesel	Manual	Front	13.4 s	4.2 l
Engine 1,499 cm³ · XXDA, XXDC Torque 270 Nm at 1500 rpm Top speed 170 km/h Urban 5.1 l/100 km Extra-urban 3.7 l/100 km Fuel tank 53 l Kerb weight 1,403 kg Ground clearance 140 mm CO₂ 110 g/km Emission standard Euro 6 Tyres 205/55/R16 215/55/R16 215/50/R17 235/40/R18 Full specifications →
	Start-Stop 1.5 MT 95 HP	95 hp 70 kW	Diesel	Manual	Front	13.4 s	4.1 l
Engine 1,499 cm³ · XXDC, XXDA Torque 270 Nm at 1500 rpm Top speed 170 km/h Urban 4.7 l/100 km Extra-urban 3.7 l/100 km Fuel tank 53 l Kerb weight 1,403 kg Ground clearance 140 mm CO₂ 105 g/km Emission standard Euro 6 Tyres 205/55/R16 215/55/R16 215/50/R17 235/40/R18 Full specifications →
	1.6 MT 115 HP	115 hp 85 kW	Diesel	Manual	Front	11.3 s	4.5 l
Engine 1,560 cm³ · T1DA Torque 215 Nm at 1750 rpm Top speed 184 km/h Urban 5.4 l/100 km Extra-urban 4.0 l/100 km Fuel tank 53 l Kerb weight 1,390 kg Ground clearance 140 mm CO₂ 117 g/km Emission standard Euro 6 Tyres 205/55/R16 215/55/R16 215/50/R17 235/40/R18 Full specifications →
	1.6 MT 125 HP	125 hp 92 kW	Gasoline	Manual	Front	11.8 s	6.4 l
Engine 1,596 cm³ · PNDA Torque 159 Nm at 4000 rpm Top speed 188 km/h Urban 8.4 l/100 km Extra-urban 5.2 l/100 km Fuel tank 53 l Kerb weight 1,374 kg Ground clearance 140 mm CO₂ 149 g/km Emission standard Euro 6 Tyres 205/55/R16 215/55/R16 215/50/R17 235/40/R18 Full specifications →
	1.6 MT 85 HP	85 hp 63 kW	Gasoline	Manual	Front	15.9 s	6.4 l
Engine 1,596 cm³ · XTDA Torque 141 Nm at 2500 rpm Top speed 165 km/h Urban 8.4 l/100 km Extra-urban 5.2 l/100 km Fuel tank 53 l Kerb weight 1,374 kg Ground clearance 140 mm CO₂ 149 g/km Emission standard Euro 6 Tyres 205/55/R16 215/55/R16 215/50/R17 235/40/R18 Full specifications →
	2.0 AMT 150 HP	150 hp 110 kW	Diesel	Robot	Front	10.3 s	4.8 l
Engine 1,997 cm³ · TYDA Torque 370 Nm at 2000 rpm Top speed 202 km/h Urban 5.5 l/100 km Extra-urban 4.4 l/100 km Fuel tank 53 l Kerb weight 1,519 kg Ground clearance 140 mm CO₂ 124 g/km Emission standard Euro 6 Tyres 205/55/R16 215/55/R16 215/50/R17 235/40/R18 Full specifications →
	2.0 AMT 170 HP	170 hp 125 kW	Diesel	Robot	Front	8.5 s	4.8 l
Engine 1,997 cm³ · T8DE Torque 400 Nm at 2000 rpm Top speed 212 km/h Urban 5.5 l/100 km Extra-urban 4.4 l/100 km Fuel tank 53 l Kerb weight 1,519 kg Ground clearance 140 mm CO₂ 124 g/km Emission standard Euro 6 Tyres 205/55/R16 215/55/R16 215/50/R17 235/40/R18 Full specifications →
	2.0 CVT 188 HP	188 hp 138 kW	Plug-in hybrid	Variator	Front	9.7 s	5.9 l
Engine 1,999 cm³ Torque 240 Nm at 4000 rpm Top speed 185 km/h Urban 5.6 l/100 km Extra-urban 6.4 l/100 km Electric range 32 km Battery 7.6 kWh Fuel tank 51 l Kerb weight 1,635 kg Ground clearance 140 mm Emission standard Euro 6 Tyres 205/55/R16, 215/55/R16, 215/50/R17, 235/40/R18 Full specifications →
	2.0 MT 150 HP	150 hp 110 kW	Diesel	Manual	Front	9.5 s	4.4 l
Engine 1,997 cm³ · TYDA Torque 370 Nm at 2000 rpm Top speed 204 km/h Urban 5.0 l/100 km Extra-urban 4.0 l/100 km Fuel tank 53 l Kerb weight 1,491 kg Ground clearance 140 mm CO₂ 114 g/km Emission standard Euro 6 Tyres 205/55/R16 215/55/R16 215/50/R17 235/40/R18 Full specifications →
